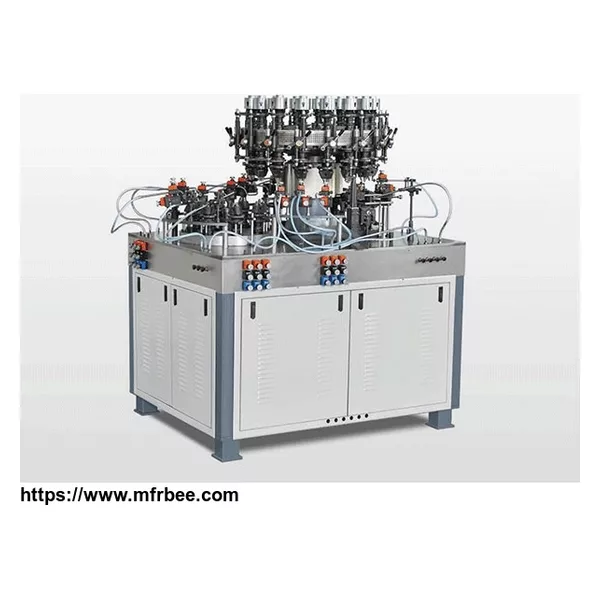

ZP40-32 16-head Double-chuck Vial-making Machine

FOB Price
USD $8,000.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Woodcase
Delivery
30 Days

ZP40-32 16-head Double-chuck Vial-making Machine

ZP40-32 is suitable for producing glass vials with dia.16mm-32mm. It firstly adopts the original lower and upper double-chuck design in part-A, which can decrease the shakiness and increase the stability of glass tubes, and improve the quality of glass vials. Part A has three sets of forming tools which can effectively promote the precision and quality of bottleneck. Part B has 8 working stations which can effectively improve the inner quality of glass vials such as water resistance.

Technical Parameter

Item Unit Parameter
Number of Station Station 16 stations in Part-A
8 stations in Part-B
Efficiency PCS/hour 1350-1500
Size of Vial Outer Diameter mm Ф16-32
Height 25-80
Inner Diameter of Neck Ф6-20
Motor Type
YR100L-6
Power KW 1.5
Voltage V 380
Rotation r/min Adjustable
Machine Size mm 1800 x 1700x1700
Assemble Size mm 1030x830
Weight KG 1800
Air Pressure (only for referance) Gas Mpa 0.012
Natural Gas 0.012
Liquid Gas 0.05
Oxygen 0.014
Air 0.02
Consumption (only for referance) Gas m³/hour 2.5-3
Natural Gas m³/hour 1-1,2
Liquid Gas KG/hour 07-0.9
Oxygen m³/hour 5
Air m³/hour 6-9
