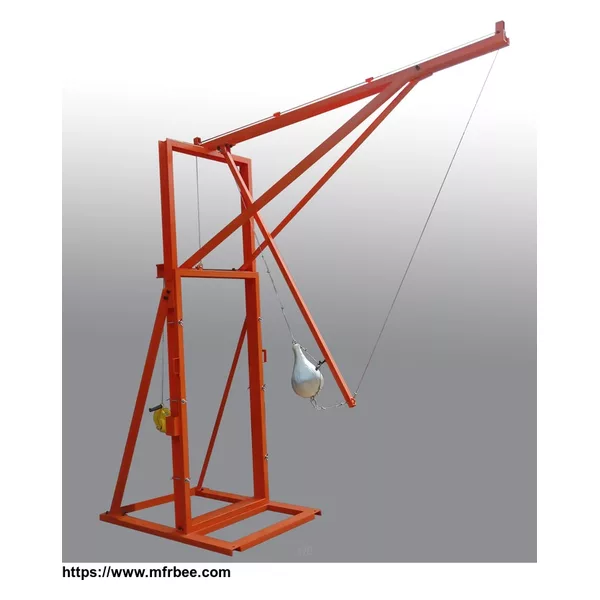

Shot Bag Setup With 45 Kg Impactor

Place Of Origin
China(Mainland)
Minimum Order
1
Packaging
Plywood case(Meet import and export requirements)
Delivery
15 Days

Determining the resistance of glazing material to impact by the penetration method.

Principle:

The specimen is supported vertically in a steel frame and an impact shot bag is released from a pre-determined height to strike the specimen at the centre. The height is progressively increased until fracture occurs.

Related Standards:

AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test

GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag

ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test

Apparatus:

1) Impact testing frame:

Frame Size: 1900mm*1500mm*3570mm

Samples Size: 1930mm*864mm

Lift: Electric

Release: Auto

Maximum impact height: 1200mm (customized)

Rubber Pad Width: 15mm

Rubber Pad Thickness: 3mm

Rubber Pad Hardness: Shore A50

2)Impact shot bag:

Weight: 45kg±0.1kg 46kg±0.1kg

Height: 330mm ± 13mm

Max diameter: 250mm

Leather thickness: 1.5mm

Lead sand size: 2.5mm

Customized: 25kg /48kg
