The three-way ball valve has T-type and L-type. The T-type can make three orthogonal pipelines interconnected and cut off the third channel, from diversion, and flow. L Three-way ball valve type can only connect two pipelines orthogonal, and cannot maintain the mutual ...
The three-piece ball valve consists of three parts, the valve cover and the intermediate valve body, the three-piece ball valve is different from the two-piece ball valve and a piece of ball valves lies in the disassembly maintenance. The three-piece ball valve is mostly fixed ...
The flanged ball check valve is used as a flap with a rubber foreskin ball. Under the action of the medium, it can be rolled up and down on the integral slide of the valve body, thereby opening or closing the valve, the sealing performance is good, the muffling is closed, no ...
The function of the German standard swing check valve is to prevent the medium back in the pipeline, the pressure applied to the nominal is PN1.6-4.0MPa, the working temperature is of -20 ℃ -350 ℃ petroleum, chemicals, pharmaceuticals, fertilizers, power, various operating ...

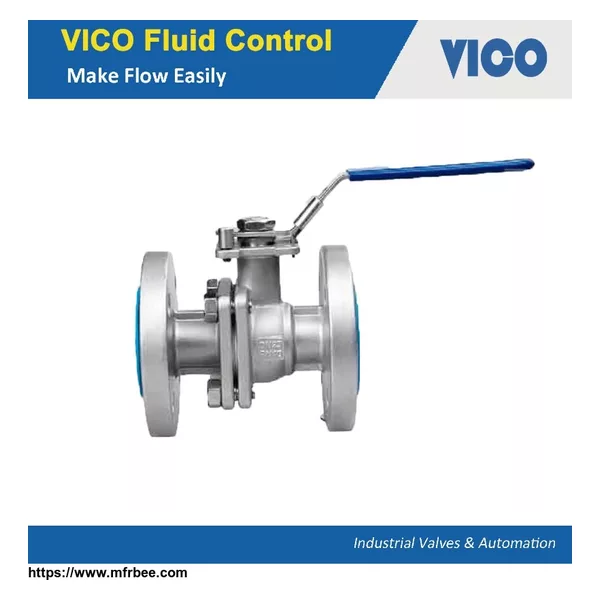

The ball valve is composed of a valve body and a bonnet. It is called a two-piece type. The one-piece type is an integrated structure. The two-piece ball valve has improved the one-piece valve with less flow and is easy to leak. The gland is added to prevent leakage. Nominal ...
The full bore ball valve has a constant-width flow, that is, the size of the pores from inflow to outflow is the same, and its size cannot be less than the value specified by the standard, which is roughly equivalent to the nominal diameter of the specification. For example, ...
Flanged, 3 way ball valve available in 316 stainless steel up to sizes 6\". Direct mount configuration for easy actuation. Available in L-port or T-port flow configurations. Flange dimensions meet ANSI B16.5. Product Source - ...
Flanged, 3 and 4 way ball valve product source - https://www.valtorc.com/valves/ball-valves/stainless-steel-ball-valves/flanged-3-way-or-4-way-ball-valve-specs/ ...
L-Port & T-Por t& X-Port Blow-Out Proof Stem/ Full Port ISO 5211 Direct Mounting Pad Temperature Range: -20 To L80℃ Features of GKV-243 4 Way Ball Valve, Flanged Connection, 3/4-Way, with ISO Mounting Pad GKV-243 PN16/40 FLANGE DIMENSIONS: EN 1092-1 TYPE 21 PN16/40(RF SF) ...
Blow-out Proof Stem/ Full Port Stem ISO 5211 Direct Mounting Pad Working Pressure(Cwp): Pn16 Bar/ Pn40 Bar Temperature Range: -20 To 180℃ Highlights of the GKV-237L Ball Valve Locking Device End Flange Dimension: DIN 2543 PN16/ DIN 2545 PN40(EN 1092-1 RF) Face To Face: EN ...
