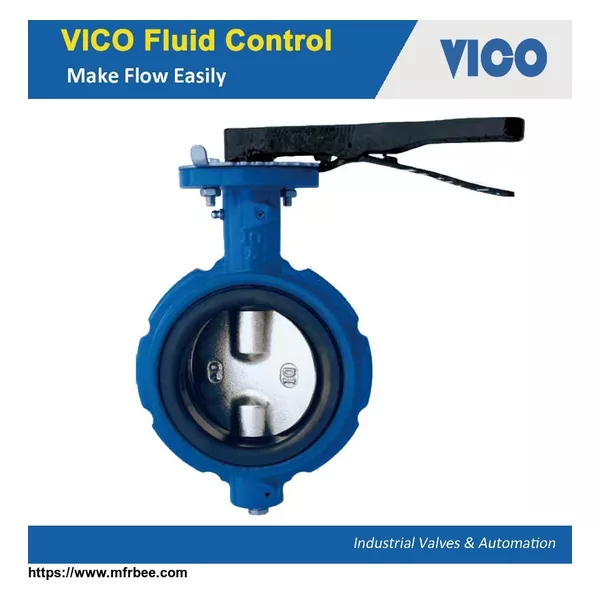

Notched Butterfly Valve

FOB Price
USD $10.00 / Piece
Place Of Origin
China
Minimum Order
100
Material
SS316,SS304,CF8M,CF8,Carbon steel,Cast-iron
Packaging
12 pcs each in carton
Delivery
30 Days
Notched Butterfly Valve

Features:
•Shorter neck design more suitable for compact space.
•2-pc stem stem design allow maximum flow values.
•Rated pressure: 200psi.
•A secondary seal provided to prevent leakage.
•Phenolic-backed resilient seat provides bubble tight shut-off.
•PTFE Stem bushing reduce torque and increase stem life time.
•Double D steam design extend stem life .
•Mounting Pad: ISO 5211 Standard.
Standard:
•Design: BS5155, APl609, EN593
•Testing: DIN3230 Part3, APl598, EN12266-1
•Face to face standard: DIN3202K1, APl609, EN558-1, ISO5752.
•Flange connection: DIN 2501, BS4504, ASME B16.1, JIS B2220.
•Medium: water, oil, gas etc.
•Working pressure: 10bar/16bar (PN1.0/PN1.6Mpa)

  • Country: China (Mainland)
  • Business Type: VALVES&AUTOMATION,ACTUATORS, FLUID CONTROL SYSTEM
  • Market:European union, ASIA, North America
  • Founded Year:2008
  • Address:1-A 1043 ,No.1229 Baoshan Road,Daqi, Beilun District,Ningbo,China
  • Contact:Coco Kou
