Techinical parameters
Engine Mode:ZS163ML

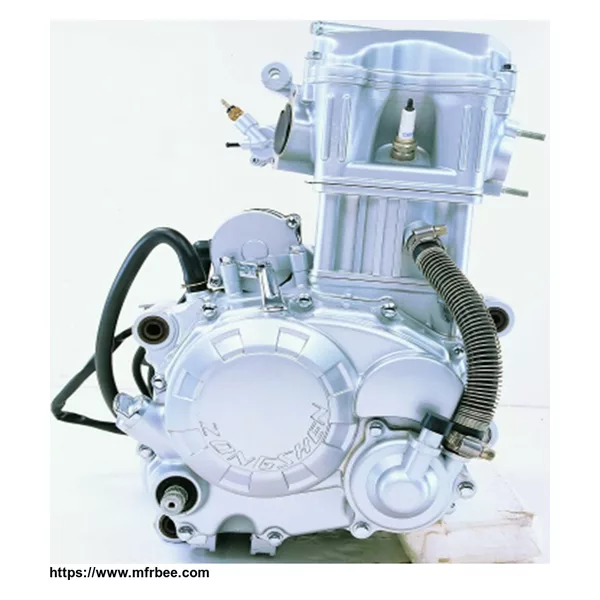

Engine Name:CG200-A Water cooled
Engine Type:Single cylinder,4-stroke,water-cooling, camshaft upward
Displacement(ml):197
Dimension(mm×mm×mm):358×355×450
Net Weight(kg):33
Max.Power(kw/r/min):10.3/7500
Max.Torque (N.m/r/min):14.2/6000
Compression Ratio:10.2 :1~10.8:1
Bore and Stroke(mm×mm):63.5×62.2
Ignition method:CDI
Lubrication method : Pressure and Splash
Min.Fuel Consumption(g/Kw.h):≤354
Starting method:Electric
Clutch methodManual :Wet Multi-Plate
Gearshift Method:Constant mesh, two stage transmission ,
5-speed Gearshift
Seller:Chongqing Zongshen Engine Manufacture Co., Ltd. contact:zhangxz@zsengine.com 1,100cc/110cc for Rickshaw or Motorcycle 2,In CBU 3,CKD is also optional 4,Self-start is optional 5,110cc is optional 6\'Naked engine Chongqing Zongshen Power Machinery Co., Ltd., the core ...
