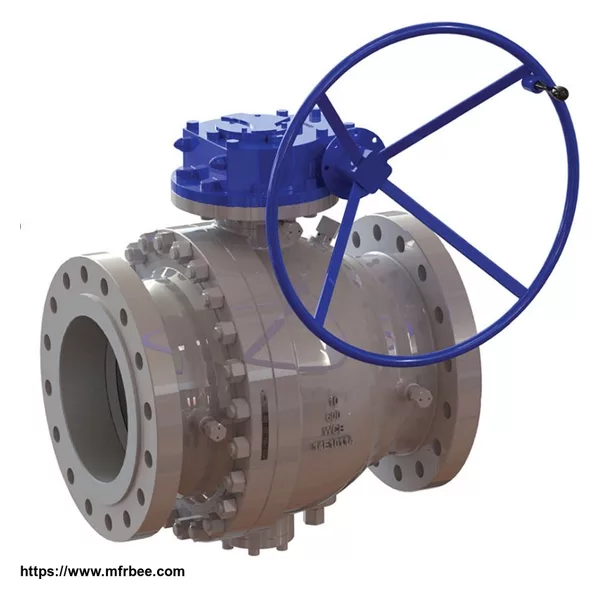

Trunnion Mounted Ball Valve
Trunnion mounted ball valve is used to industrial pipeline and long-distance transportation pipeline for various corrosive and non-corrosive medium, such as water,steam,oil,gas,liquefied Gas,naturalgas,nitricacid,aceticacid,strongoxidizer,urea etc.According to different working conditions, there are two types of valve body structure choices:2 pieces and 3 pieces split body .
Specification:
l Size:2”~56”
l Pressure Rating: Class150~2500LB
l Main Materials: WCB,LCC, LCB, WC6, 4A,CF8, CF8M, CF3, CF3M,CF8C,A105, F11, F22,
F304,F316,F321etc.
l Design and Manufacture:API 6D, API608, ASME B16.34
l Face-to-Face:ASME B16.10, API 6D
l Anti-static:API 6D
l Ends Connection: Flange,Butt Welding
l FireProof: API 607, SIO 10497
l Inspection & Testing: API 598, API 6D
l Operator: Manual, Worm Gear, Electric, Pneumatic, Manual-Air-Hydraulic.
Feature:
l Double Block & Bleed
l Cavity Pressure Self Relief
l Optional Double Piston Design
l Emergency Sealant Injection
l Full Bore or Reduce Bore
Blow-out Proof Stem
