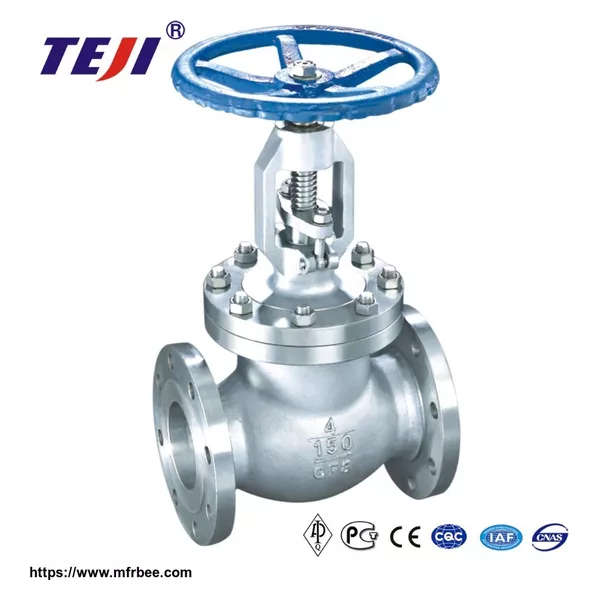

API603 Series Globe Valve
API603 series globe valve is widely used in fine chemicals and food factory. The wall thickness of this series globe valve is strictly in accordance with ANSI B16.34 and is lighter than conventional API600 series globe valve. The specially designed extended bonnet construction meets the requirement of cryogenic conditions.
Specification:
l Size:2”~24”
l Pressure Rating: Class150~300LB
l Main Materials:Stainless Steel, Alloy Steel, Duplex Steel etc.
l Design and Manufacture:API603
l Face-to-Face:ASME B16.10
l Ends Connection: Flange,Butt Welding
l Inspection & Testing: API 598
l Operator:Handwheel, Worm Gear, Electric.
Feature:
l Straight Pattern Body Design
l OS&Y, BB
l Integral Yoke with Bonnet
Loose Disc (plug or ball type disc)
