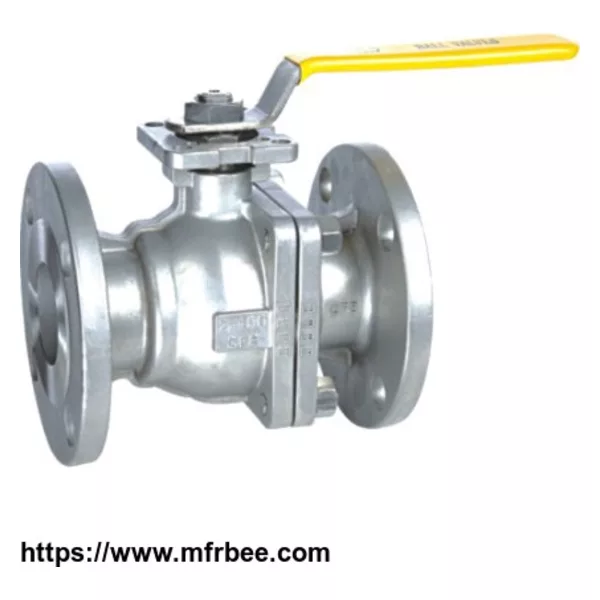

FACTORY PRICE WCB ANSI FLOATING BALL VALVE
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- WENZHOU
- Minimum Order
- 1
- Packaging
- International STD seaworthy packing, Plywood Crates
- Delivery
- 15 Days
Specifications
Specification
Size: 2~48"(DN50~DN1200)
Rating: 150~1500LB(PN16~PN250)
Body Materials: CS, SS
Product features
● High precision ball& High tightness seat
● Long life ball&seat
● The most economical material combination
● The best fire safe and static resistance safety
● Widely applicable
● Various driving types
Product parameter
| Main material | WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, CF8C, 4A, A105, LF2, F304, F316, F304L, F316L, F321, F51, etc. |
| Pressure rating | Class 150 to Class 2500 (PN2.5 to PN 420) |
| Applied Standard | API, DIN, GOST,etc. |
| Applied Temp. | -196℃ to 450℃（-320℉ to 842℉） |
| Applied Operator | Manual, Gear, Electric, Pneumatic |
- Country: China (Mainland)
- Business Type: 制造商
- Market:中东,亚洲,美洲,欧洲
- Founded Year:1980
- Address:Anfeng Ind. Zone(North Zhangbao Rd.)Oubei Wenzhou China.
- Contact:ALEX LIN
