250KSps 16bit Data Acquisition Multifunction Board

Product Description

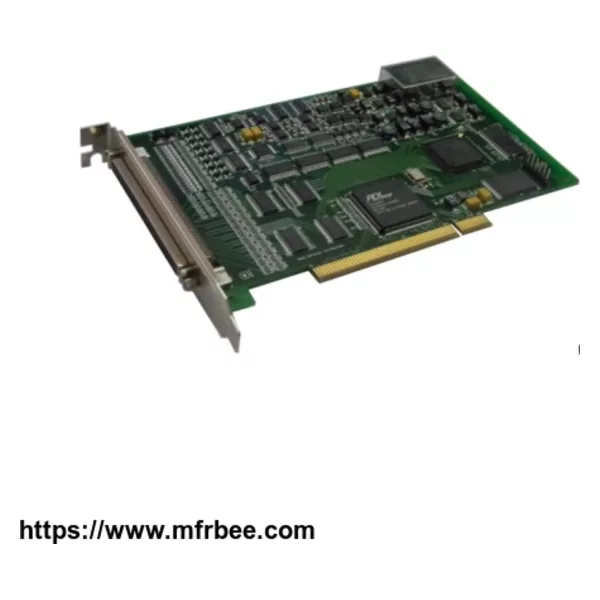

ZY43203/43303 is a multifunctional module for data acquisition based on PXI/CPCI/PCI bus respectively, which includes analog input, analog output, and TTL digital I/O. The module can realize 32 single-end/16-channel differential analog inputs with a resolution of 16bit, sampling rate up to 250KSps, maximum input range of ±10V, and transmission gain can be set as 1, 2, 4, 8. Furthermore, it can realize external 48-channel bidirectional TTL level digital I/O, 4-way single-end static channels with a resolution of 16 bits and a maximum output range of ±10V. The powerful features can meet the industrial measurement needs of different users, and its excellent compatibility is suitable for various system configurations.

Performance Parameters

Quantity of analog input channels ........... 32 single-end / 16-channel differential

Quantity of analog output channels ........... 4-channel static single-end

Resolution ........... 16 bit

Sampling rate ........... 250KSps

Digital I/O ........... 48-channel bidirectional TTL level

General Specifications

External dimensions (L×W×H) ........... standard PXI/CPCI 3U card 160mm×100mm×4HP,

tolerance<0.2mm with 3U puller,

standard PCI card 175mm×106mm, tolerance<0.2mm

Connector ........... SCSI-100 pinhole connector

Working Environment

Temperature range ........... -40°C~ +85°C

Relative humidity ........... Work 5~ 85%, no condensation

Storage 5 ~ 95%, no condensation

Typical Applications

Construction of automatic test system

Data acquisition and recording system

Control simulation system development

Overview of Data Acquisition Multifunctional Modules

Data acquisition multi-functional modules have many functions, including analog I/O, TTL digital I/O, programmable digital I/O and counting, which are one kind of the most widely used products in measurement industry. We can provide various multi-functional modules such as Windows, Linux, Lab VIEW/RT, RTX, QNX, Wince and API whose powerful features can meet the industrial measurement requirements of various users, and its excellent compatibility is suitable for various system configurations.
