Double 8 Select 1 Video Matrix Board
Product Quick Detail
- FOB Price
- USD $261.00 / Piece
- Place Of Origin
- China(Mainland)
- Minimum Order
- 1
- Packaging
- wrapped in anti static bags in carton cases with foams inside
- Delivery
- 15 Days
Specifications
● Switch topology; double 1×8, 1 line
● Special resistance: 75Ω
● Provide 48-bit time scale counter and resolution is 1μS, and it can be consistent with the system time by receiving timing operation of system
● Buffer: 2M*16bits
● Measurement of pulse interval: 2 pulses
● Support storage area solidify module information and version information
Product Description

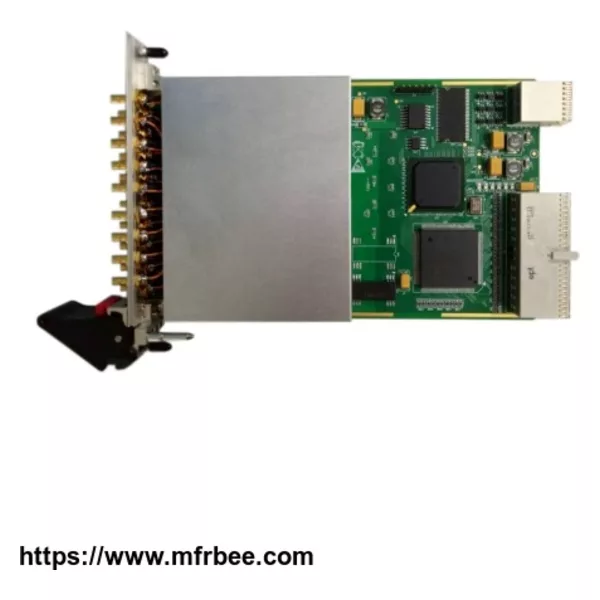

ZYD0015 video matrix module is a standard PXI bus with 2 groups of channels and each group with 8 channels. This module can be consistent with the system time by receiving timing correction operation of system. The powerful features can meet the industrial measurement needs of different users, and good compatibility is suitable for various system configurations.
Performance Parameters
Switch topology ........... double 1×8, 1 line
Switch type ........... RF relay
Broadband ...........≥2.5GHz
Resistance ........... 75Ω
Max switching voltage ........... 30V
Max switching current ........... 0.5A
Max switching power ........... 10W
General Specifications
External dimensions (L×W×H) ........... Standard PXI 3Ucard 160mm×100mm×4HP,
Tolerance < 0.2mm, with 3U puller
Connector ........... MINI SMB connector
