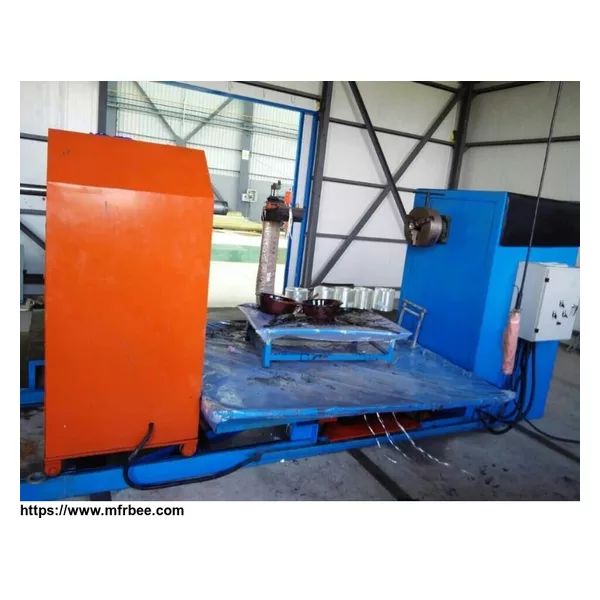

Elbow Winding Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Winding diameter range: 1″—24″
Main shaft rotation speed: 0—90rpm
Winding machine center height: 1100mm
Hydraulic system rated working pressure: 14Mpa
Equipment power: 5.5KW
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:2008
- Address:No.6 east of Rubber Road, Northern Industry Area, Hengshui, Hebei, China.
- Contact:li sunny
