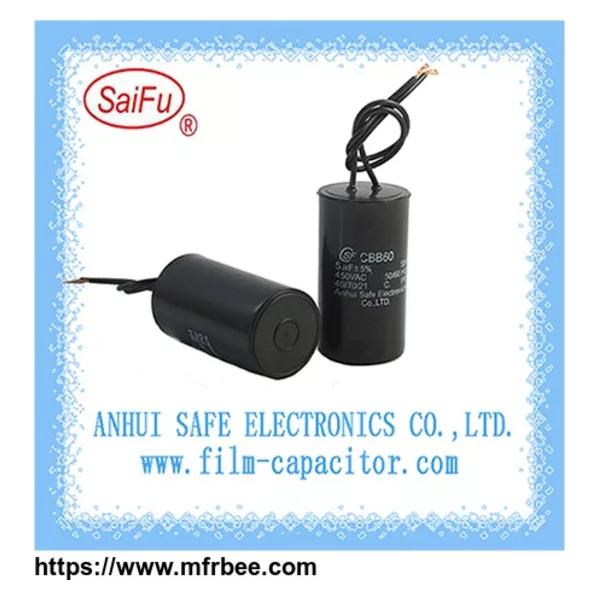

CBB60 AC Motor Start and Run Capacitor
Product Quick Detail
- FOB Price
- USD $1.50 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- Standard Export Package
- Delivery
- 7~15 Days After Payment
Specifications
1.CBB60 AC Motor Start and Run Capacitor
The CBB60 capacitor has a cylindrical aluminum case , riot gear and solder structure.The bottom of the capacitor can also be bolted and drawn out with flexible wires .The capacitor has small size, light weight and good self-healing. It adopts zinc-aluminum edge thickening evaporation process, so it has excellent electrical performance and high reliability. The unique sophisticated technology enables the capacitor to withstand large surges and high voltages.It is suitable for the frequency of 50Hz/60Hzac single phase motorto start and run power. The shape of themotor capacitor is cylindrical,ABS or PBT plasticenclosure. It has self-healing property,good stability and reliability.
2.Outline Drawing
3.Specifications
| Reference standards | GB/T 3667.1(IEC60252-1) |
| Climatic category | 40/70/21、40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety protection | S0/S3 |
| Voltage range | 250VAC、370VAC、440VAC、450VAC |
| Capacitance range | 1～60uf |
| Capacitance tolerance | ±5%、±10%、±15% |
| Dissipation factor | 20*10-4（100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000）VAC or 2000VAC-50Hz for 60 seconds |
| Insulation resistance | ≥3000s(100Hz,20ºC,1min) |
4.Applications
(1) Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
(2)Used for Washing machine、Refrigerator、Water pump,etc.
