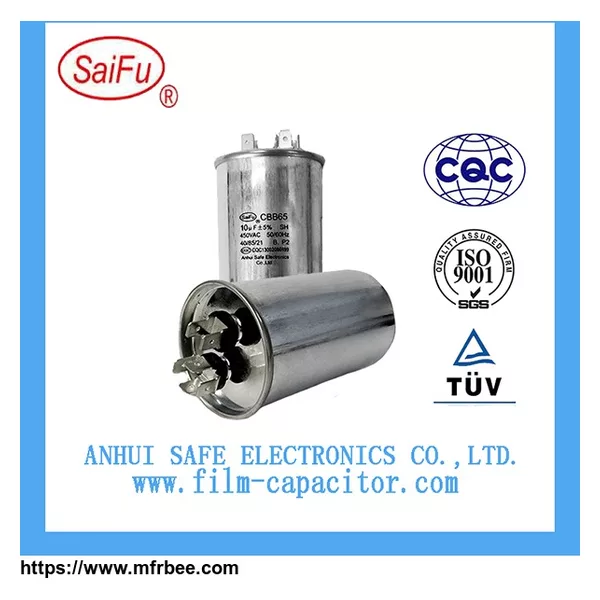

1.CBB65 AC Motor Capacitor
The CBB65Ac MotorCapacitor adopts zinc-aluminum edge thickened metallized polypropylene film as the electrode and the dielectric. It is tightly rolled by high speed winding machine, sealed by aluminum shell, and impregnated with refined castor oil at high temperature to keep it in a vacuum state. Therefore, the capacitor can be more stable, longer life.What’s more,it adopted the second generation of mechanical explosion-proof design, so the reliability is very higher. It is suitable for the frequency of 50Hz/60Hzac single phase motor starting and operating power. Besides, it also suitable for high power lighting lamps and lanterns of power factor compensation.
2.Outline Drawing
3.Specifications
Reference | GB/T 3667.1(IEC60252-1) |
Climatic category | 40/70/21、40/85/21 |
Class of operation | Class B(10000h) Class C(3000h) |
Class of safety protection | S2 |
Voltage range | 250VAC、370VAC、440VAC、450VAC |
Capacitance range | 2~100uf |
Capacitance Tolerance | ±5%、±10%、±15% |
Dissipation factor | 20*10-4(100Hz,20ºC) |
Test voltage terminal to terminal UTT | 2Un for 2 seconds |
Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
Insulation Resistance | ≥3000s(100Hz,20ºC,1min) |
4.Applications
(1) Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
(2) Applied to air conditioner,refrigerator,electric generator,cleaning machine,etc.
