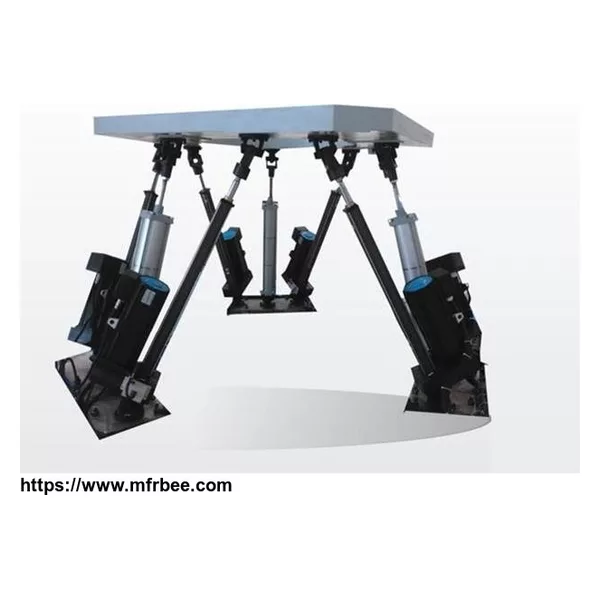

Six Degree of Freedom Platform
Product Quick Detail
- Place Of Origin
- Wuhan china
- Minimum Order
- 1
- Packaging
- 1
- Delivery
- 15 Days
Specifications
| Six Degree of Freedom Platform | |
| Function |
Position and Pose simulation, Sine wave simulation, single degree of freedom motion, multi-degree of freedom multiple motion
Random wave recurrence, Road spectrum, wave spectrum and flight spectrum recurrence etc. |
| Payload | 0~20t |
| Tabletop Dimension | 100×100mm~5000×5000mm |
| Displacement | ±10mm~±600 |
| Angular Displacement | ±1°~±30° |
| Velocity | 0~1000mm/s |
| Angular Velocity | 0~200°/s |
| Acceleration | 3g |
| Angular Acceleration | 500°/s2 |
| Displacement Repeatability | 0.02mm |
| Displacement of Angular Repeatability | 0.004° |
| Control Interface | Serial Port, Network Port |
| Others | According to the customer requirements, we can customized the control interface and tabletop dimension and adjust the performance data. |
