The XSP-300 Series Biological Microscopes are equipped with
stable frame, and it can fit monocular, binocular, trinocular head on it.
Double layer mechanical stage, with adjustable long handle and coaxial
coarse/fine focus knob make the operation easily. It is built with high quality
achromatic objectives, wide field eyepiece and halogen lamp with adjustable
brightness, which shall guarantee for a best image. With excellent performance and
competitive price, the XSP-300 Series Biological Microscopes has been
widely applied in schools and universities, medical, health, forestry
and agriculture etc.research institutes and departments.
General Specifications
Components | Specifications |
Total Magnification | 40X to 1600X |
Wide Field Eyepiece | WF10X (WF16X Optional) |
Achromatic Objective | 4X/0.10, 10X/0.25, 40XS/0.65, 100XS/0.85 |
Eyepieces Head | Trinocular Head |
Mechanical Tube Length | 160mm |
Filter Diameter | 32mm |
Nosepiece | Quadruple Nosepiece |
Stage | 115mmX125mm |
Condenser | Abbe.NA1.25 |
Diaphragm | Iris Diaphragm |
Coarse/Fine Focal Range | 30mm |
Illumination | LED lamp 1W 220/110V (LED 3W and Halogen lamp optional) |
Power | 100-240V, 50/60 Hz |
Net Weight | 4KG |
Gross Weight | 4.5KG |

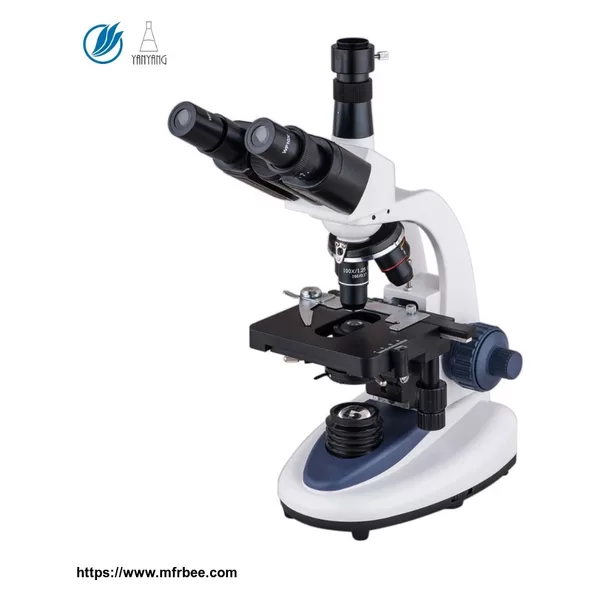

XSP-300SM Trinocular Biological Microscope
Structure Details
Place of Origin: Jiangsu, China Brand Name: YANYANG Model Number: XSP-300V Theory: Biological Microscope Drawtube: Binocular Viewing head: Compensation Free Binocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), 100X(spring, oil) ...
Quick Details Place of Origin: Jiangsu, China Brand Name: OEM Model Number: XSP-200D Theory: Biological Microscope Drawtube: Monocular Viewing head: Compensation Free Monocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), ...
Quick Details Place of Origin: Jiangsu, China Brand Name: OEM Model Number: XSP-300SM Theory: Biological Microscope Drawtube: Trinocular Viewing head: Compensation Free Trinocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), ...
Quick Details Place of Origin: Jiangsu, China Brand Name: OEM Model Number: XSP-200V Theory: Biological Microscope Drawtube: Binocular Viewing head: Compensation Free Binocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), ...
Quick Details Place of Origin: Jiangsu, China Brand Name: OEM Model Number: XSP-300E Theory: Biological Microscope Drawtube: Binocular Viewing head: Compensation Free Binocular Head Inclined at 45 degree Eyepiece: WF10X, WF16X(optional) Objective: 4X, 40X, 40X(spring), ...
Specification Viewing head Compensation Free Binocular Head Inclined at 45 degree Huygens eyepieces Wide field eyepieces WF10X, WF16X(optional) Achromatic objective 4X, 10X, 40X(spring), 100X(spring, oil) Stage Double Layer Mechanical Stage Size 120*125mm Condenser Abbe N.A ...
Overview Quick Details Place of Origin: Zhejiang, China (Mainland) Brand Name: ABBEY TECHNOLOGY Model Number: XSP-300V Theory: Biological Microscope Drawtube: Binocular Product name: XSP-300V Biological Microscope Magnification: 40X-1600X Wide Field Eyepiece: WF10X (WF16X ...
Quick Details Place of Origin: Zhejiang, China (Mainland) Brand Name: ABBEY TECHNOLOGY Model Number: XSP-300V Theory: Biological Microscope Drawtube: Binocular Product name: XSP-300V Biological Microscope Magnification: 40X-1600X Wide Field Eyepiece: WF10X (WF16X Optional) ...
