Toroidal coil winding machine
Product Quick Detail
- FOB Price
- USD $6,500.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- wooden case
- Delivery
- 55Days
Specifications
Description:

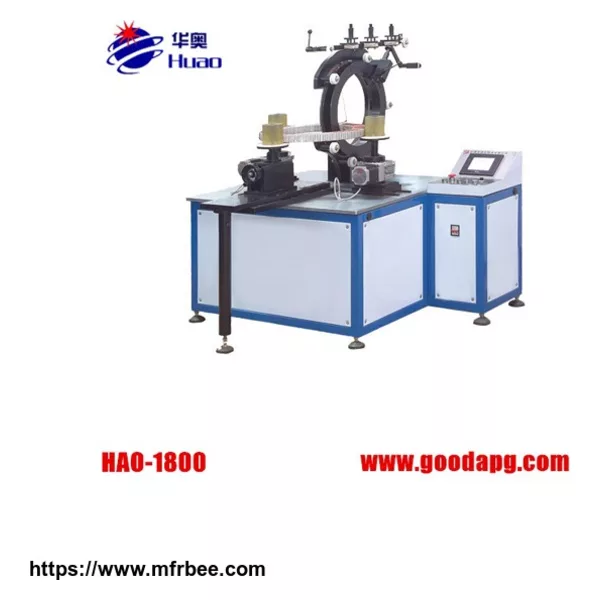

HAO-1800 Toroidal coil winding machine large-sized CNC toroidal winding machine is the new generation of circular winding equipment specially designed for solving the problem of large manual winding labor intensity, low working efficiency and incorrect turns of large-sized circular coils.
Features:
1. PLC system, it has the machine tool wire storage automatic computation, automatic counting,automatic stop.
stop memory and so on, and simplifies the operation greatly.
2. Toroidal coil winding machine multi-wire winding mechanism,it realize the dual-wire or multi-wire multi-layer winding.
3. High precision and wide application range.
4. Low maintenance cost, energy saving and low noise.
5. Toroidal coil winding machine It is the domestic most advanced large-sized circular winding equipment.
Technical Parameters:
| Item | Technical Parameters |
| Product Name | Toroidal winding machine |
| Model | HAO-1800 |
| Diameter range of windable electromagnetic wire | 3.5mm |
| Min inner diameter of winded coils | Φ 200mm |
| Max outer diameter of winded coils | Φ 1800mm |
| Max height of winded coils | 250mm |
| Max winding rotation speed | 100rpm |
| Machine tool power | 2.2KW |
| Max outline size of machine tool | 1300*1000*1500mm |
Steps of Quality Control:
1. Toroidal coil winding machineStrictly control the purchase standard of raw materials.
2. With high precision equipments and rich experience workers to process components, make each process up to standard.
3. Assembly process, recheck the quality of the components, the machine appearance etc.
4. Before shipment, test all operating procedures by winding the core to ensure the machine work normally.
