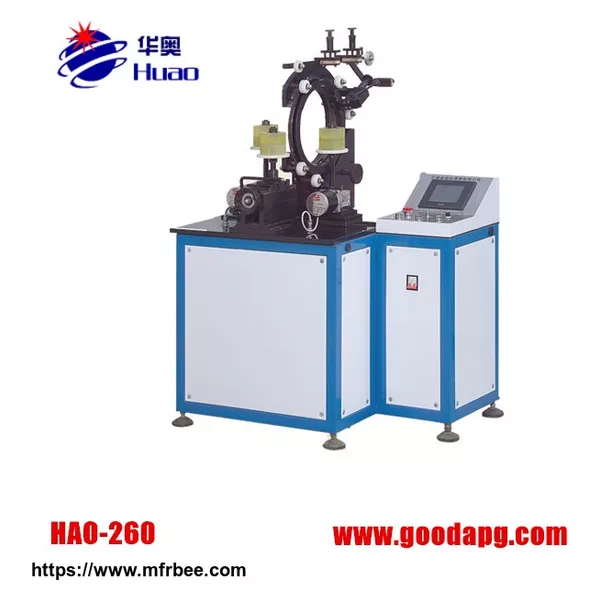

Transformer coil winding machine
Product Quick Detail
- FOB Price
- USD $6,500.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- wooden case
- Delivery
- 55 Days
Specifications
Description:
Transformer coil winding machine for voltage transformer is the special device designed according to the technology requirements of domestic enclosed voltage transformer secondary coil. Transformer coil winding machine is the effective attempt for realizing the numerical control,mechanization and speciality of secondary coils of enclosed voltage transformer.
Technical Parameters:
| Product Name | CNC winding machine |
| Model | HAO-480 |
| Diameter of windable electromagnetic wire | Φ0.5-2.6mm |
| Max transverse motion distance of working bench | 400mm |
| Max longitudinal motion distance of working bench | 200mm |
| Max outer diameter of winded secondary coils | 120mm |
| Max winding rotation speed | 100rpm |
| Max power of winding motor | 1.5KW |
| Max outline size of machine tool | 700*1100*1350mm |
Steps of Quality Control:
1. Strictly control the purchase standard of raw materials.
2. With high precision equipments and rich experience workers to process components, make each process up to standard.
3. Assembly process, recheck the quality of the components, the machine appearance etc.
4. Transformer coil winding machine Before shipment, test all operating procedures by winding the core to ensure the machine work normally.
- Country:
- Business Type:
- Market:
- Founded Year:
- Address:
- Contact:sandy xu
