Description

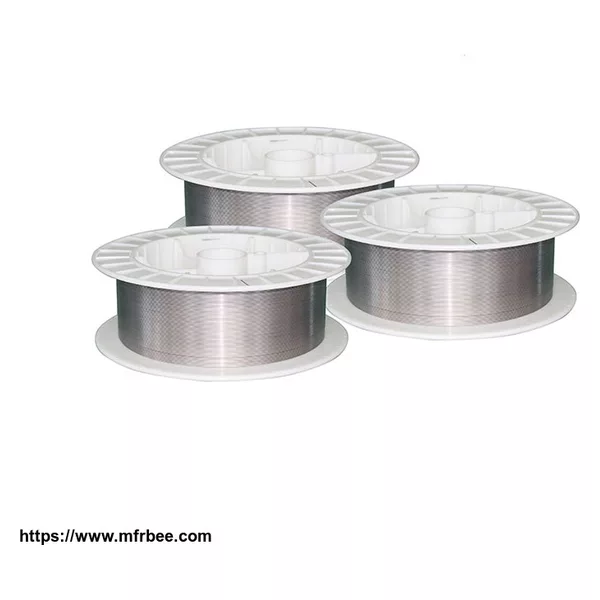

Monel 400 thermal spray wire with a high strength composition of nickel and cooper alloy. It is specifically designed for spraying in arc spray and flame spray systems. It can produces well-bonded
coatings with excellent machineability. It is highly resistant to seawater, atmospheric corrosion,various acids and alkaline environments. It can equivalent to: Tafa 70T, 71E Monel 60.
Applications
Corrosion protection for chemical and desalination plants.
Resist saltwater corrosion for compoents such as steam valves, pumps, seal rings and plungers.
Protects immersed machine elements from saltwater corrosion, particularly for applications where a surface harder than typical galvanic coatings is required.
Product Details
Chemical composition:
Grade | Chemical composition(%) | ||||||
Ni | Fe | Cu | C | Mn | Si | Ti | |
Monel 400 | Min 62 | Max 2.5 | 28-32 | Max 0.15 | 2-4 | Max 1.2 | 1.5~3.0 |
Physical Properties
Grade | Density | Melting Point |
Monel 400 | 8.83g/cm3 | 1310°C |
Typical Characteristics:
Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
HRB 84 | 4310 psi | 10 lbs /hr/100A | 70% | Good |
Sizes & Packaging:
Diameter | Packaging | Wire Weight |
1/16" (1.6mm) | MIG (D 300) | 15kg((33 lb)/spool |
Note that special sizes, or packing requirements are available on all requests.
Specifications:
EN ISO 18274 Ni 4060 ( NiCu30Mn3Ti), EN ISO 14919
Description Alloy 276 is a high purity nickel-chrome-molybdenum wire , It is designed for arc spraying. It produces dense, well-bonded coatings with good resistance to corrosion, and stress cracking in caustic mediums. Alloy 276 exhibits good abrasion and metal to metal wear ...
Description FeCrBSi is a solid thermal spray wire used for arc spray systems. It produces a partially amorphous, hard, abrasive and corrosion resistant coating, with a service environment up to 1700° F. High chrome like finishes can be obtained by typical grinding and lapping ...
Description Amorphous Alloy is a cored wire specifically designed for arc spray systems. It produces an amorphous, hard, abrasive and corrosion resistant coating, with a service environment up to 1700° F. The inclusion of 2.0% aluminum in the formulation results in extremely ...
Description Tung Carbide is a cored wire specifically designed for arc spray systems. It is a titanium and tungsten carbide alloy in an amorphous matrix. Tung Carbide produces a hard, abrasive and corrosion resistant coating, with a service environment of up to 1000° F. Tung ...
Description Stainless steel 18/5 wire specifically designed for arc spraying. It produces dense, well-bonded coatings with excellent machinability and wear and corrosion resistance. SS 185 is widely used for machine element repair, dimensional restoration and wear resistance ...
Description FeCrBSi is a cored thermal spray wire used for arc spray systems. It produces a partially amorphous, hard, abrasive and corrosion resistant coating, with a service environment up to 1700° F. High chrome like finishes can be obtained by typical grinding and lapping ...
Description NiAl 95/5 is a solid thermal spray wires, It can be use as bond coatings and for machine element restoration widely. The materials show an exothermic reaction during the spray process, Also can produce dense coatings with exceptionally high bond strengths that ...
