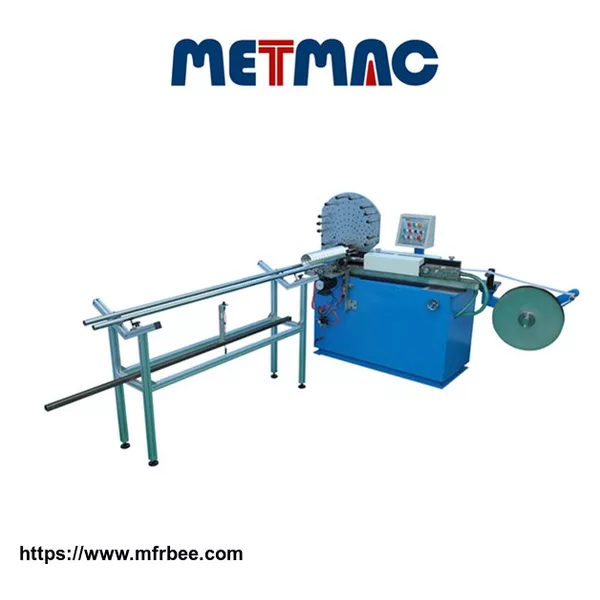

ALUMINUM DUCT FORMING MACHINE
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Aluminum duct forming machine is professional for making straight round duct. It can greatly increase the production efficiency.
It is working combine with round pipe elbow making machine, Seam welding machine, Angle iron round rolling machine and Three roller bending machine can making any type round duct easily.
The frame adopts full steel welding structure with enough hardness and rigidity. It also has been heated processed and highly frequently vibrated.
Adopting floor boring-milling machine for guaranteeing the precision.
AFTER SALES SERVICE
We not only apply ourselves to develop the new products and improve our products’ quality, but also build a quite perfect after sales service network all over the world and supply more convenience and better service for our customers.
We supply the foundation fig of the machine’s installation but not constructing. We take charge of the machine’s installation and adjustment if you supply the lifting equipment and necessary conditions. Please let us know the list of accessories before the machine leaves the factory.
1. When the machine is finished, we will inform you to inspect the machine in our factory. After your inspection and acceptance, the machine will be shipped.
2. During installing the machine, we supply free training and technical consultation service, buyer be in charge of accommodation, flight and daily salary of technician.
3. The final acceptance of the machine is done in you place according to the signed agreement and relative technical files.
4. We guarantee for product’s maintenance, change and return after sales for one year. In this period, we can change the damaged parts for free if not your responsibility (not including easily worm parts). After this period, we can repair the machine for you only taking the basic charge.
Technical parameter
| Type | Descriptions | Unit | LF-500 |
| 1 | Diameter range | mm | φ80-φ500 |
| 2 | Thickness | mm | 0.08-0.15 |
| 3 | Strip width | mm | 60 |
| 4 | Ripple |
4,5,6,7 Option
6 Standard |
|
| 5 | Feeding speed | m/min | 0-46 |
| 6 | Lock form | Double decked tabby locking | |
| 7 | Power | kw | 2 |
| 8 | Weight | kg | 440 |
| 9 | Dimension | mm | 2210X830X1530 |
