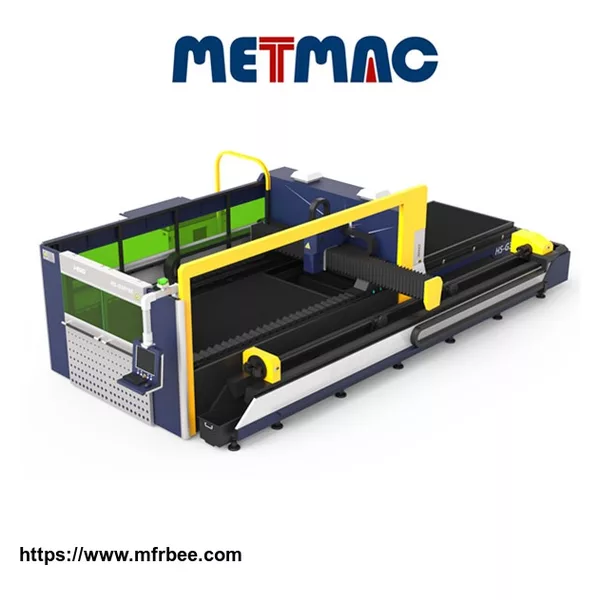

PIPES AND PLATES FIBER LASER CUTTING MACHINE

Minimum Order
1
Place Of Origin
China (Mainland)
Packaging
N/A
Delivery
15 Days

Pipes

Professionally cutting square pipes, round pipes, rectangle pipes, D-shaped pipes and hexagon pipes etc. Cutting capacity- square pipes: 20*20-150*150mm, round pipes: Φ20-Φ219mm, thickness 0.5-5mm carbon steel pipes, 0.5-5mm stainless steel pipes.

Plates

Professionally cutting 0.5-20mm carbon steel, 0.5-10mm stainless steel, 0.5-8mm brass, 0.5-10mm aluminum, 0.5-4mm copper, as well as galvanized steel, electrolytic steel and silicon steel etc (thicknesses are related to the kinds of materials and fiber source power)

Laser cutting of metal is one of the most common types of laser processing. In the process of laser processing of metal, cutting occurs by melting the material and removing the evaporation products from the cutting zone by blowing with oxygen (steel), air, nitrogen (stainless steel, aluminum alloys, copper alloys).

The use of methods of laser cutting metal in the production of blanks and finished parts allows you to meet the requirements of the drawing with high accuracy, reduce the cost of manufacturing products by reducing and eliminating such operations as cutting, cutting, milling,

The equipment for laser processing of metal has the following advantages:
Speed

Flexibility
High quality of the technological process
The maximum output is good (special software allows you to cut a sheet with the maximum coefficient of material use)
When processing metal with laser cutting, there is no need for rigid mechanical fastening of the workpiece due to the absence of static or dynamic influences.
Metal cutting is carried out with the help of focused radiation

The laser cutting machine of metal can be used for the production of a wide range of products, for example:
parts for machine-building production
parts for commercial equipment, stands, shelves, shelves for all purposes
parts for cabinets and cabinets and furniture for various purposes
stencils, signs, letters, templates
elements for decorative products
elements of the modern interior, etc.

Technical parameters

Descriptions Units
Processing Area mm 3000X1500 (optional)
Laser power W 500W-3000
Max. moving speed m/min 60
Max. acc. speed G 0.5
Positioning Accuracy mm/m 0.05
Reposition Accuracy mm ±0.05
Whole machine weight kg 8500
Machine dimensions mm

8500*3650*2100;4450*900*1050
