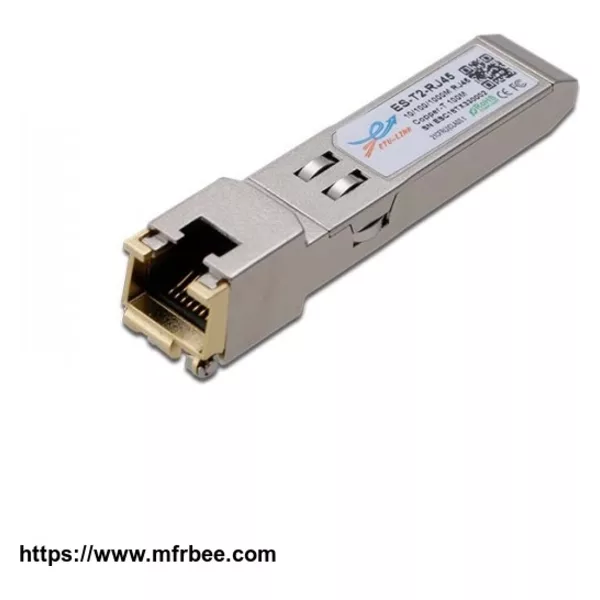

10/100/1000BASE-T Copper SFP Transceiver
Item NO.:ES-T2-RJ45
Date rate: 10/100/1000M
Wavelength:---
Distance:100M
Connector:RJ45
First:---
DDM:YES
Place of origin: Made in China
Shipping Port: ShenZhen
Package type: Individual package or 10pc/package
Features
1.Up to 1.25Gb/s bi-directional data links/Hot-pluggable SFP footprint/
2.TX Disable and RX Los/without Los function/Fully metallic enclosure for low EMI/
3.Low power dissipation (1.05 W typical)/Compact RJ-45 connector assembly/
4.Access to physical layer IC via 2-wire serial bus/
5.10/100/1000Mbps compliant in host systems with SGMII interface/
6. Operating case temperature range of
0°C to +70°C (Commercial),-20°C to +85°C (Extend)
Applications
1.Gigabit Ethernet/Fiber Channel/Switch to Switch interface
2.Switched backplane applications/Router/Server interface
3.Other optical transmission systems
