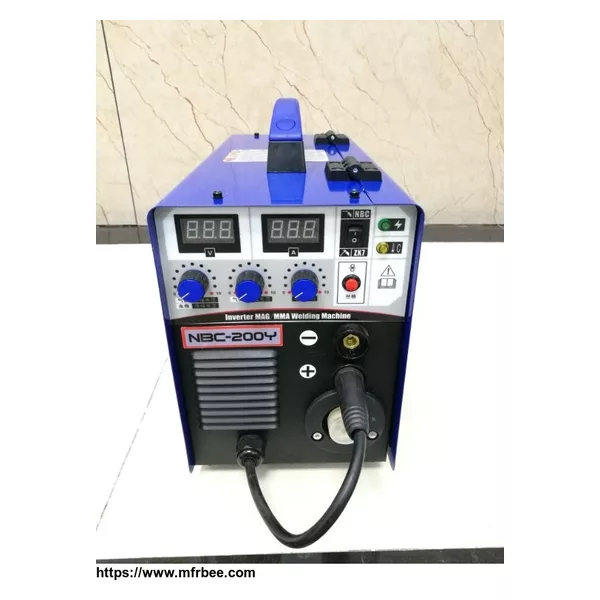

MIG200 CO2 Welding Equipment

Place Of Origin
中国
FOB Price
USD $140.00 / Piece
Minimum Order
50
Packaging
1pcs 1 paper box
Delivery
30 Days

Stable IGBT inverter technology
Single MIG/MAG welding function
High reliability and excellent welding performance
Easy to operate, economical and practical
Suitable for welding mild steel and alloy steel
Minimal spatter, deep penetration, good welding seam.


Input Voltage(V) AC220V±15%
Frequency(HZ) 50/60
Rated Input Current(A) 37.4
Output Current Range(A) 40-200
Rated Output Voltage(V) 16.5-24
Duty Cycle(%) 60
Power Factor 0.73
Efficiency(%) 80
Type of Wire Feeder Built-in
Wire-feeding Speed(mm) 2.5-13
Housing Protection Grade IP21
Diameter of Wire 0.8/1.0
Insulation Grade F
Plate Thickness(mm) 0.8+
Net Weight(KG) 21
Dimension(mm) 468*245*478
