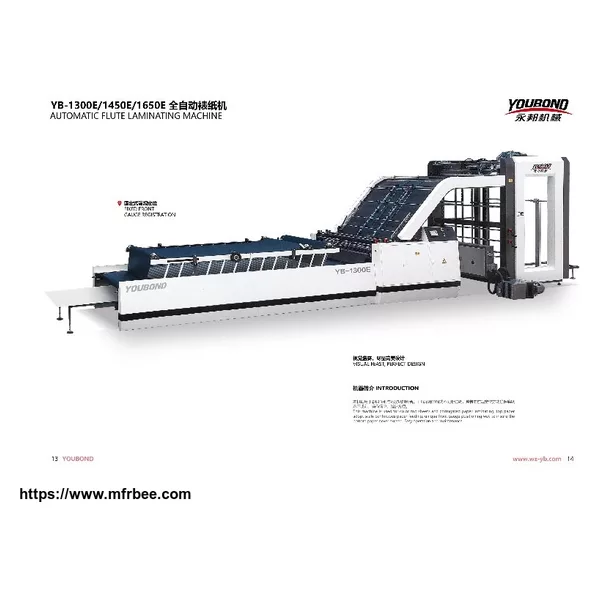

Intelligent Full Automatic Flute Laminating Machine YB-1650E
Product Quick Detail
- Measurement
- 2450*2250*2550 2600*2100*2150 5800*2320*1200
- Top Sheet Tickness
- Kraft paper from 145GSM to 450GSM top sheet of cardboard paper from 175GSM to 600GSM
- Type
- Flute Automatic
- Place Of Origin
- China
- FOB Price
- USD $39.00 / Piece
- Buttom Sheet Tickness
- A/B/C/E/F corrugated paper Four ply corrugated paper, such as: AB/BB/BC/BE/EE The gray board paper from 600GSM to 1800GSM
- Minimum Order
- 1
- Packaging
- metal shelf
- Delivery
- 30 days after receiving your deposit
Specifications
This machine is used for color top sheets and corrugated paperlaminating, top paper adopt scale continuous paper feeding,unique front gauge positioning way to insure the bottom papernever exceed.Easytooperatingand maintenance.
| Model | YB-1300E | YB-1450E | YB-1650E |
| Max sheet size | 1300*1250mm | 1450*1250mm | 1650*1450mm |
| Min sheet size | 400*400mm | 400*400mm | 400*400mm |
| Top sheet thickness | 150-600GSM | 150-600GSM | 150-600GSM |
| Bottom sheet thickness | A/B/C/E/F 瓦楞纸 Corrugated paper, 工业纸板 Industrial board | ||
| Max speed( sheets/hour) | 6000sheet/hour | 6000sheet/hour | 6000sheet/hour |
| Fitting precision | ±1mm | ±1mm | ±1mm |
| Dimensions | 11.5*2*2.4M | 11.5*2.2*2.4M | 11.5*2.4*2.4M |
| Machine weight | 5000kgs | 5500kgs | 6000kgs |
| Machine power | 10KW/380V | 11KW/380V | 12KW/380V |
- Country: China (Mainland)
- Business Type: Flute Laminating Machine
- Market:European Country, South America
- Founded Year:2010
- Address:Add: No. 266 Yanxi Road, Songaodi Village, Guoxi, Ouhai District, Wenzhou City, Zhejiang, China
- Contact:Christy Yu
