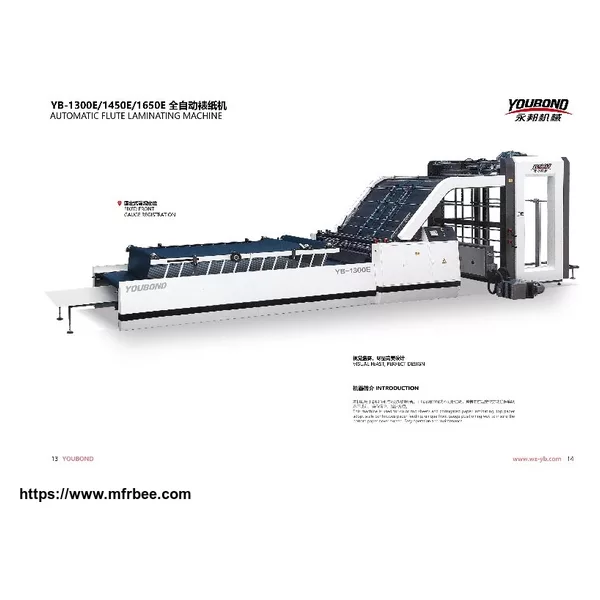

Full Automatic Flute Laminating Machine YB-1300E
Product Quick Detail
- Place Of Origin
- China
- FOB Price
- USD $33.00 / Piece
- Minimum Order
- 1
- Packaging
- metal shelf
- Delivery
- 30 days after receiving your deposit
Specifications
This machine is used for color top sheets and corrugated paperlaminating, top paper adopt scale continuous paper feeding,unique front gauge positioning way to insure the bottom papernever exceed.Easytooperatingand maintenance.
| Model | YB-1300E |
| Max sheet size | 1300*1250mm |
| Min sheet size | 400*400mm |
| Top sheet thickness | 150-600GSM |
| Bottom sheet thickness | A/B/C/E/F Corrugated paper, Industrial board |
| Max speed( sheets/hour) | 6000sheet/hour |
| Fitting precision | ±1mm |
| Dimensions | 11.5*2*2.4M |
| Machine weight | 5000kgs |
| Machine power | 10KW/380V |
- Country: China (Mainland)
- Business Type: Flute Laminating Machine
- Market:European Country, South America
- Founded Year:2010
- Address:Add: No. 266 Yanxi Road, Songaodi Village, Guoxi, Ouhai District, Wenzhou City, Zhejiang, China
- Contact:Christy Yu
