Knotted Cable Mesh

Place Of Origin: China

Minimum Order: 100

Packaging: N/A

Delivery: 15 Days

Knotted Cable Mesh - Durable, Versatile with Longevity

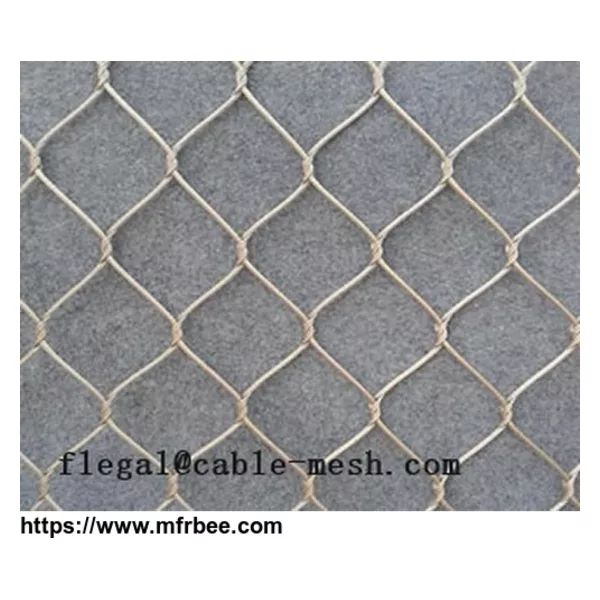

Knotted cable mesh

High versatility

Our range of knotted cable mesh are versatile and extensively used in following aspects:

Building screen.

Security fencing.

Division screen.

Zoo enclosure.

Animal cage.

Infill balustrade panels.

Aviary netting.

Fall protection.

Helipad.

Green facade.

Parking & garage facades.

Decoration.

Shop fitting, etc.

Stainless steel inter-woven cable mesh on the floor.

Stainless steel knotted cable mesh

Excellent security

With flat surface, knotted cable mesh effectively avoids people and animals being scratched. In addition, this mesh is extremely impact resistant, that is to say, it can provide superb protection to enclosed animals and minimize fall damages.

Superb durability

Made of high quality stainless steel AISI 304 or AISI 316, our range of knotted cable mesh has indestructible construction for providing high impact and break resistance. It has excellent wear and tear resistance, high load bearing capacity to bear the heavy snow. Meanwhile, it can withstand destructive chewing by rodents and other pests.

Aesthetic property

Equal rhombic holes allow for high transparency without any sight blocking. Its elegant appearance and durable structure make it much more appreciated by garden designers and architects all over the world.

Wide life span

Knotted cable mesh is remarkably weather resistant so it can withstand the harshest conditions such as hard rain, heavy snow even hurricane. It also has high resistance to UV, corrosion and rust which permit a long lifespan over 30 years. Meanwhile, our range of knotted cable mesh is free of maintenance and special cleaning and coating are not needed.

A picture about the dimensions of knotted cable mesh

Dimension of knotted cable mesh

Besides, knotted cable mesh supplied by our company is environment friendly, non-flammable and reusable. Additionally, flexible structure allows for free-angle curving and fold for easy transportation and installation.

Details:

Name: flexible cable mesh - knotted type.

Pattern: diamond.

Cable material: stainless steel AISI 304, 304L, 316 or 316L.

Cable construction: 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)

Cable diameter: 1/8", 3/32", 5/64", 1/16" and 3/64".

Mesh opening size: 1" × 1", 1-1/2" × 1-1/2", 2" × 2", 3" × 3" and 4" × 4".

Standard mesh angle: 90°.

Mesh size: W: 20 mm to 120 mm; H: 20 mm to 120 mm.

Specification:

Knotted cable mesh - 1/8" cable

Code Cable diameter Hole size Normal break Rope structure

KCM-A51 1/8" 3.2 mm 2" × 2" 51 mm × 51 mm 1600 lbs Cable section 7-19

7 × 19 cable structure

KCM-A76 1/8" 3.2 mm 3" × 3" 76 mm × 76 mm 1600 lbs

KCM-A90 1/8" 3.2 mm 3.55" × 3.55" 90 mm × 90 mm 1600 lbs

KCM-A102 1/8" 3.2 mm 4" × 4" 102 mm × 102 mm 1600 lbs

KCM-A120 1/8" 3.2 mm 4.75" × 4.75" 120 mm × 120 mm 1600 lbs

Knotted cable mesh - 3/32" cable

Code Cable diameter Hole size Normal break Rope structure

KCM-B51 3/32" 2.4 mm 2" × 2" 51 mm × 51 mm 920 lbs Cable section 7-7

7 × 7 cable structure

KCM-B60 3/32" 2.4 mm 2.4" × 2.4" 60 mm × 60 mm 920 lbs

KCM-B76 3/32" 2.4 mm 3" × 3" 76 mm × 76 mm 920 lbs

KCM-B90 3/32" 2.4 mm 3.55" × 3.55" 90 mm × 90 mm 920 lbs

KCM-B102 3/32" 2.4 mm 4" × 4" 102 mm × 102 mm 920 lbs

Knotted cable mesh - 5/64" cable

Code Cable diameter Hole size Normal break Rope structure

KCM-C38 5/64" 2.0 mm 1.5" × 1.5" 38 mm × 38 mm 676 lbs Cable section 7-7

7 × 7 cable structure

KCM-C51 5/64" 2.0 mm 2" × 2" 51 mm × 51 mm 676 lbs

KCM-C60 5/64" 2.0 mm 3" × 3" 60 mm × 60 mm 676 lbs

KCM-C76 5/64" 2.0 mm 3.55" × 3.55" 76 mm × 76 mm 676 lbs

Knotted cable mesh - 1/16" cable

Code Cable diameter Hole size Normal break Rope structure

KCM-D25 1/16" 1.6 mm 1" × 1" 25.4 mm × 25.4 mm 480 lbs Cable section 7-7

7 × 7 cable structure

KCM-D30 1/16" 1.6 mm 1.2" × 1.2" 30 mm × 30 mm 480 lbs

KCM-D38 1/16" 1.6 mm 1.5" × 1.5" 38 mm × 38 mm 480 lbs

KCM-D51 1/16" 1.6 mm 2" × 2" 51 mm × 51 mm 480 lbs

KCM-D60 1/16" 1.6 mm 3" × 3" 60 mm × 60 mm 480 lbs

Knotted cable mesh - 3/64" cable

Code Cable diameter Hole size Normal break Rope structure

KCM-E20 3/64" 1.2 mm 0.8" × 0.8" 20 mm × 20 mm 270 lbs Cable section 7-7

7 × 7 cable structure

KCM-E25 3/64" 1.2 mm 1" × 1" 25.4 mm × 25.4 mm 270 lbs

KCM-E30 3/64" 1.2 mm 1.2" × 1.2" 30 mm × 30 mm 270 lbs

KCM-E38 3/64" 1.2 mm 1.5" × 1.5" 38 mm × 38 mm 270 lbs
