Square cable mesh, also known as square cable netting, is a new kind of versatile mesh made from galvanized or stainless steel cables. With elegant and beautiful appearance, square cable mesh is generally used as decoration mesh for halls and walls. Meanwhile, its high strength and durability make it preferred to areas where safety is the most concern, such as schools, stadiums, buildings and other public areas.

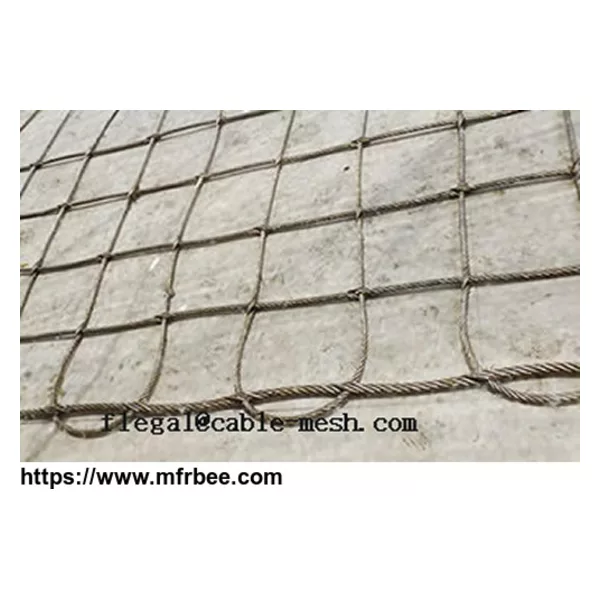

A variety of square cable meshes that suits your different applications can be supplied as show in the following pictures:
Details:
Specification:
Galvanized square cable mesh | Stainless steel cable mesh | ||||||
Code | Rope diameter (mm) | construction | Min breaking force (kN) | Code | Rope diameter (mm) | construction | Min breaking force (kN) |
SCM-CG1 | 1.5 | 7 × 7 | 1.2 | SCM-CS1 | 1.5 | 7 × 7 | 1.7 |
SCM-CG2 | 2.0 | 7 × 7 | 2.7 | SCM-CS2 | 2.0 | 7 × 7 | 2.5 |
SCM-CG3 | 2.5 | 7 × 7 | 4.8 | SCM-CS3 | 2.5 | 7 × 7 | 3.9 |
SCM-CG4 | 3.0 | 7 × 7 | 6.1 | SCM-CS4 | 3.0 | 7 × 7 | 5.6 |
SCM-CG5 | 4.0 | 7 × 7 | 10.9 | SCM-CS5 | 4.0 | 7 × 7 | 10.7 |
SCM-CG6 | 5.0 | 7 × 19 | 14.7 | SCM-CS6 | 5.0 | 7 × 19 | 13.7 |
SCM-CG7 | 6.0 | 7 × 19 | 25.1 | SCM-CS7 | 6.0 | 7 × 19 | 20.5 |
SCM-CG8 | 8.0 | 7 × 19 | 44.7 |
Galvanized square cable mesh | Stainless steel cable mesh | ||||||
Code | Rope diameter (mm) | construction | Min breaking force (kN) | Code | Rope diameter (mm) | construction | Min breaking force (kN) |
SCM-BG1 | 6 | 7 × 7 | 25 | SCM-BS1 | 6 | 7 × 7 | 23 |
SCM-BG2 | 8 | 7 × 7 | 44 | SCM-BS2 | 8 | 7 × 7 | 36 |
SCM-BG3 | 10 | 7 × 7 | 69 | SCM-BS3 | 10 | 7 × 7 | 60 |
