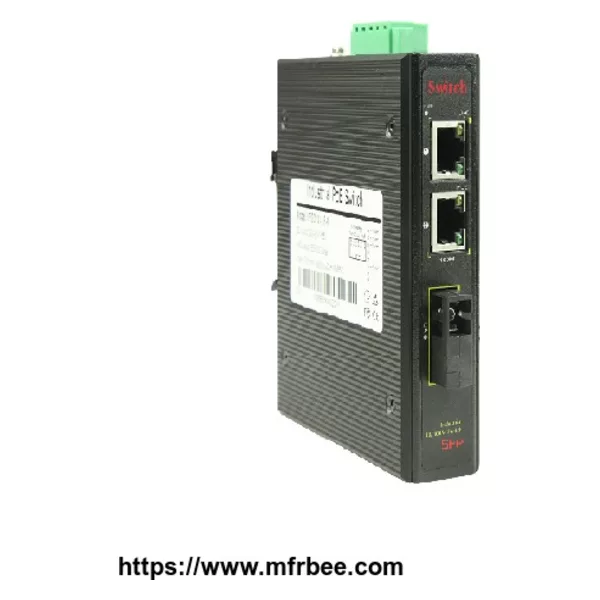

3port 10 100M Industrial Switch Fiber Media Converter

Description

    3-port industrial switch fiber media converter, with 2x 10/100M Ethernetports and 1x 100M SC port, for connecting with devices like computer,

switch, hub, server, etc. Optical fiber SC interface extends network transmission distance limit from 100m to above 25KM (multi-mode 2KM,

single-mode 25KM), it simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals.

    IPS31032F product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were

made by aluminum extrusion, more lighter, stronger, better resistance ability to  corrosion and electromagnetic interference, ensure stability

and security of Industrial Ethernet Switch,  plus standard DIN-35 rail type installation method.

Features

• Industrial design, 2x 10/100M Ethernet RJ45 ports with AutoUplink™ and 1x 100M optical port
• Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
• RJ-45 port supports Auto MDI/MDI-X
• Automatic MAC address learning and aging
• Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
• Plug and play, with LED indicators for monitoring power/link/activity, easy to use.
• Provides DIN35 rail-type installation method
• Electromagnetic compatibility of up to 4 grade standard
• IP40 protection class
• Superior performance, successfully used in industrial field
