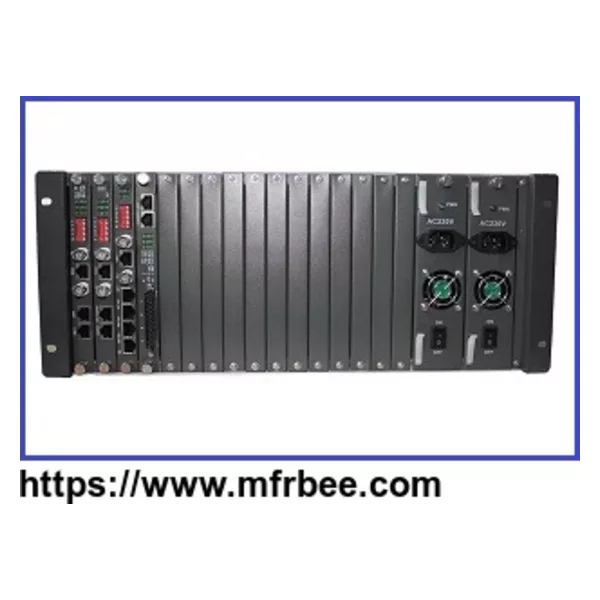

4U Rack Mount Chassis

Description:

The 4U/16port rack(BD-CH04) can support for 16 interface fiber card. every card could work independently and different types of interface converter card can be inserted in one rack；the system power supply is separated from interface converter by communication insulation technology, so that the reliability of the system can be ensured.

Feature:

u      Support kinds of PDH fiber optical multiplexer

1E1+100M Ethernet,2E1+100M Ethernet,4E1+100M Ethernet, 8E1+100M Ethernet, 16E1+100M Ethernet)

u      Support kinds of E1 interface cards (E1 to Ethernet converter

E1 to V.35 converter

u      Compact 4U high,19inch rackmount units

u       Support maximum 18 cards, 2 slots for power supply module, 16slots for service cards(15service cards+1 network management card)

u       Realize SNMP management by central chassis

u      every function card supporting hot plug;

u      There are two power supply slots, can support double power or single power.

Work condition

operating temperature: 0 ℃ ~70 ℃

storage temperature: -40 ℃ ~85 ℃

relative temperature: 5%~95% non-condensing

power supply card

option I – DC48V,range DC36V~DC72C

option II – AC220V,range AC90V~AC240V
