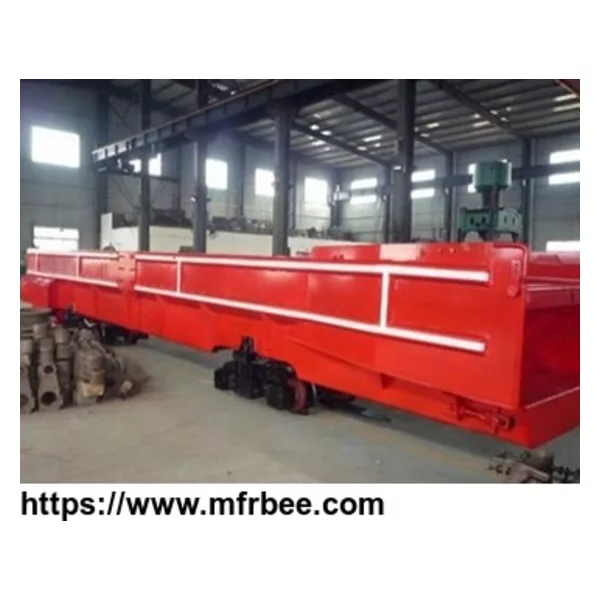

1. Small ST Underground Mining Shuttle Mine Car is mainly used for railway tunnel, hydraulic culvert, such as underground mine roadway and military cavern excavation construction. It is a kind of efficient equipment of transporting the materials;
2. Good shock absorption performance, stable operation, not easy to fall;
3. Underground shuttle car is especially suitable for bending more mechanized storage construction of the tunnel and lane section.
Model | ST(D)-14B | ST(D)-16B | ST(D)-20B | ST(D)-25B | ST(D)-30B | |
Volume(m3) | 14 | 16 | 20 | 25 | 30 | |
Self weight(t) | 13.6 | 17.8 | 19.84 | 22.6 | 28.8 | |
Loading capacity(t) | 28 | 32 | 40 | 50 | 60 | |
Track gauge(mm) | 600/762/900 | |||||
Overall dimension size | Length(m) | 11.25 | 12.84 | 12.9 | 14.3 | 17.8 |
Width(m) | 1.77 | 1.77 | 1.78 | 2.05 | 1.8 | |
Height(m) | 2.56 | 2.68 | 2.68 | 2.7 | 2.7 | |
Min. turning radius(m) | 18 | 20 | 25 | 25 | 30 | |
Loading height(m) | 1.45 | 1.52 | 1.53 | 1.7 | 1.73 | |
Disassemble time(min) | 2 | 4 | 4 | 4.5 | 4.5 | |
Max running speed(km/h) | 15 | |||||
Max motor power(kw) | 18.5 | 18.5*2 | 22*2 | 22*2 | 30*2 | |
Drive mode | single drive | double drive | ||||
Center distance of truck frame(mm) | 5450 | 6250 | 6350 | 7080 | 7250 | |
Applicable rail(kg/m) | >=33 | >=33 | >=38 | >=38 | >=43 | |
Applicable roadway size(width*height)(m) | 3.4*3.5 | 3.5*4 | 4*4 | 4*4.5 | 5*5.5 |
