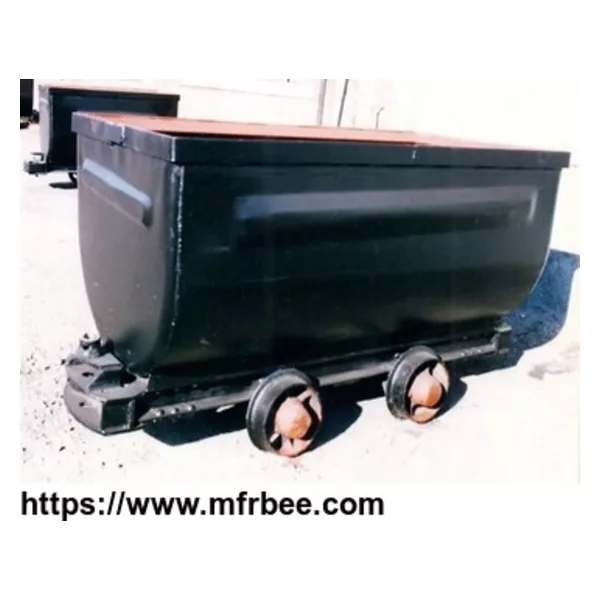

We have Various type of narrow gauge tramcar, for example,
MGC1.1-6A / MGC1.1-6B/MGC1.7-6A/MGC17-6B/MGC1.7-9D/MGC3.3-9
All the coal mine wagon are approved MA certificate with quality and safety.
Model | Capacity (m3) | Payload (t) | Track(mm) | Wheelbase(mm) | Wheel dia(mm) | Loading height(mm) | Loading(KN) | Overall weight(kg) | Overal dimesion(mm) | Spring damper |
MGC1.7-6A | 1.7 | 2.7 | 600 | 750 | 300 | 320 | 60 | ≤720 | 2400*1050*1200 | single |
MGC17-6B | 1.7 | 2.7 | 600 | 750 | 300 | 320 | 60 | ≤760 | 2400*1050*1200 | two |
MGC1.7-9D | 1.7 | 2.7 | 900 | 600 | 350 | 320 | 60 | ≤970 | 2100*1150*1300 | two |
Introduction Of MGC Narrow Gauge Tramcar We have various type of tramcars, which have different capacity. All of them are approved MA certificate with quality and safety. Parameters Of MGC Narrow Gauge Tramcar Model Capacity (m3) Payload (t) Track(mm) Wheelbase(mm) Wheel ...
