Railway Mine Wagon Rail Wheel
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- discuss personally
Specifications
Advantages of Railway Mine Wagon Rail Wheel
We can produce all kinds of railway mine wagon wheels, for example: 600 gauge mine car wheel, 600 gauge mine cart wheel, material of rail cart wheel is 350 steel and cast iron, shaft thick have 50 mm, 55 mm, 60 mm, 75 mm diameter gauge, 600 round of 200, 240, 300, and 350 are all in stock, gauge 762, 900, 1435 to need to make to order.
Parameters of Railway Mine Wagon Rail Wheel
| Model | Mine Car Weight kg | Track mm | Wheel Diameter | Max Axle Distance of wheels | Mindistance of covers | Axle diameter |
| ZBL600/300 | ≤2400 | 600 | 300 | 808 | 510 | 60 |
| ZBL762/300 | 762 | 970 | 672 | |||
| ZBL900/300 | 900 | 1108 | 810 | |||
| ZBL600/350 | ≤6700 | 600 | 350 | 850 | 490 | 80 |
| ZBL762/350 | 762 | 1012 | 652 | |||
| ZBL900/350 | 900 | 1150 | 790 | |||
| ZBL600/400 | ≤9000 | 600 | 400 | 870 | 476 | 95 |

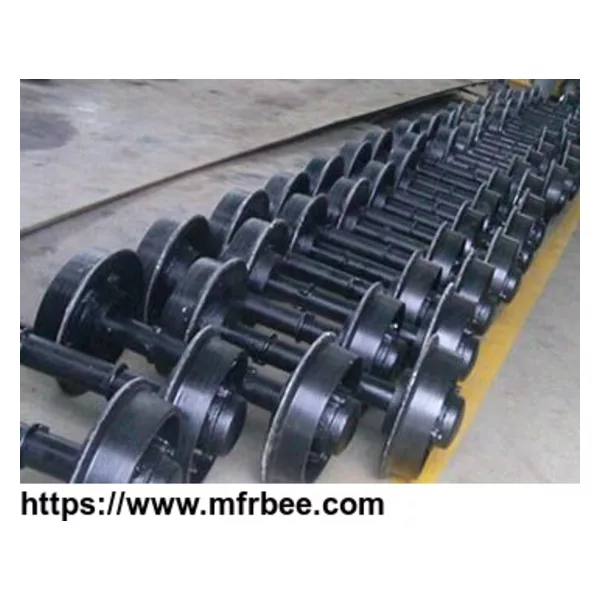

Pictures of Railway Mine Wagon Rail Wheel
