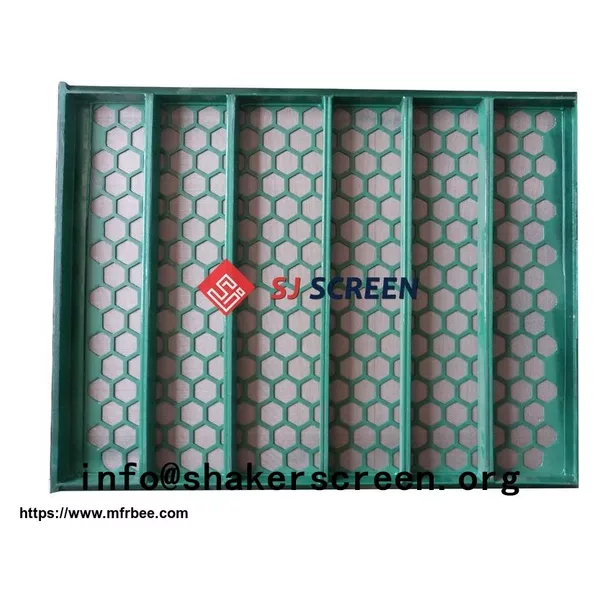

Brandt VSM 300 Primary
Product Quick Detail
- FOB Price
- USD $8.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 100
- Packaging
- 2 pcs per carton, packed in wooden case
- Delivery
- 7-15work days
Specifications
Replacement Primary Screens for Lower Deck of Brandt VSM 300 Shaker
Technical Parameter
- Mesh Material: stainless steel 304/316/316 L.
- Body Material: Q235 steel/composite.
- Screen Type: pretension, Repairable.
- Screen Angle: 7°.
- Screen Layered: Single, dual or triple layered.
- API RP 13C Designation: API 10 – API 325.
- Size: 889 × 686 mm.
- Weight
- Steel frame type: 11.5 kg.
- Composite frame type: 8.2 kg.
- Color: green, black.
- Package: 2 pcs per carton, 20 pcs/wooden case.
SJ-VSM 300P primary shale shaker screen is manufactured for the replacement screen which compatible with Brandt VSM 300 shale shaker. It is installed on the lower (primary) deck of the VSM 300 which mounted on a constant 7° ramp. Primary screen offers a higher throughput capacity and ensures consistent conveyance of solids thus minimize the solids build-up.
Adaptable Shale Shaker Model
SJ-VSM 300P primary shaker screens are used as the substitute screen for
- Lower deck screen (4 screens) of Brandt VSM 300 shale shaker.
- Brandt VSM 300 vibrating screens.
- Brandt VSM 300 mud cleaner.
Styles
Competitive Advantage
- Higher throughput capacity.
- Steel framework & composite framework optional.
- Prevent the part excessive expansive damaged.
- Manufactured according to the API RP 13C (ISO 13501).
- Scientific & reasonable cost control system for competitive price.
- Adequate inventory in the shortest time to meet customers' demand.
- Warranty Period: 1 year.
- Working Life: 400–450 hours.
Performance Parameter
Download Catalogue
| Screen Designation | Mesh Type | API RP 13C Designation | Conductance Number | D100 Separation (microns) | Layer No. | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|---|
| SJ-VSM 300P-A325 | XR | API 325 | 0.39 | 44 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A270 | XR | API 270 | 0.67 | 57 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A230 | XR | API 230 | 0.71 | 68 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A200 | XR | API 200 | 1.32 | 73 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A170 | XR | API 170 | 1.34 | 83 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A140 | XR | API 140 | 1.89 | 101 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A120 | XR | API 120 | 1.89 | 134 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A100 | XR | API 100 | 2.66 | 164 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A80 | XR | API 80 | 2.76 | 193 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A70 | XR | API 70 | 3.33 | 203 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A60 | XR | API 60 | 4.1 | 268 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A50 | XR | API 50 | 5.17 | 285 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A40 | XR | API 40 | 8.64 | 439 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A35 | XR | API 35 | 9.69 | 538 | 1/2/3 | 4.6 |
| SJ-VSM 300P-A20 | XR | API 20 | 10.88 | 809 | 1/2/3 | 4.6 |
| * D100: Particles this size and larger will normally be discarded. * API: Corresponding API sieve equivalent as per API RP 13C. * Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing. |
Show Details
Remarks:
Brandt, VSM 300, Primary are marks of Varco I/P, Inc.
ShengJia only produces the replacement screens but not original from Brandt.
