Pyramid Shaker Screen
Product Quick Detail
- FOB Price
- USD $8.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 100
- Packaging
- Packed in paper carton, shipped by wooden case
- Delivery
- 15 Days
Specifications
Three-Dimensional Structure Shaker Screen with Good Permeability

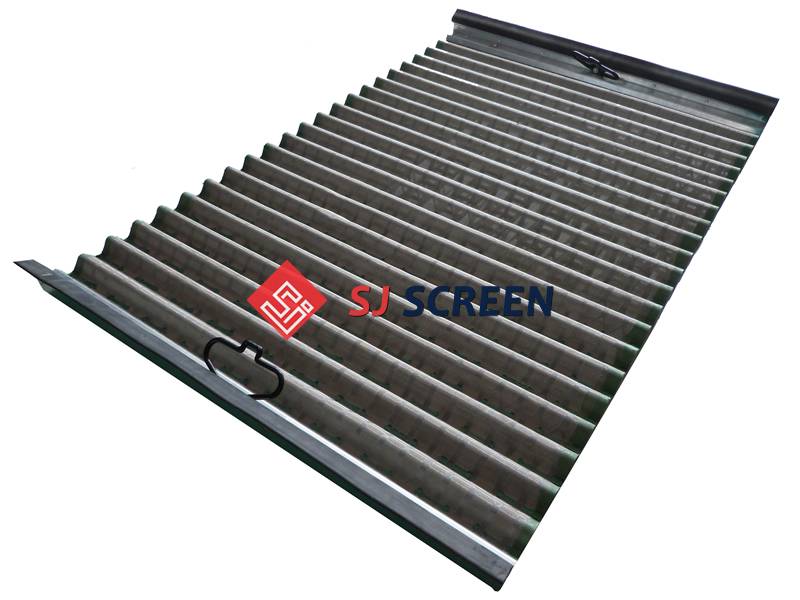

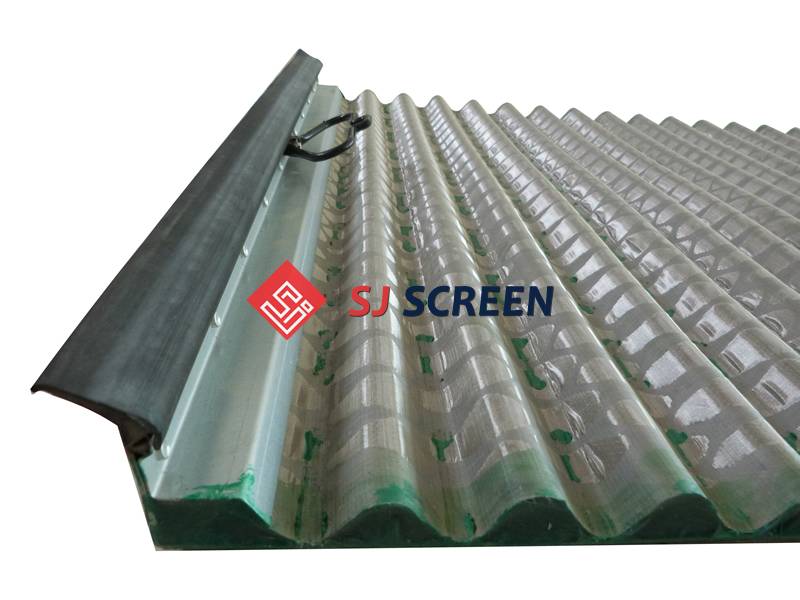

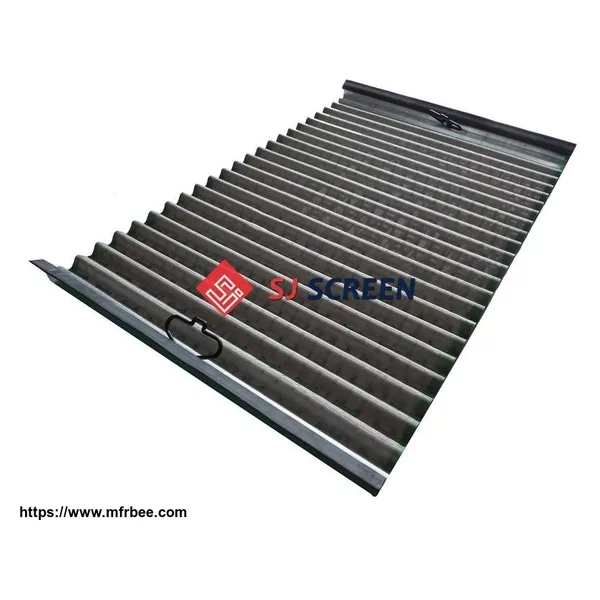

Pyramid shaker screen also called three-dimensional shale shaker screen. It is a new type of replacement screen, which has a single-side screen compression system. This product is an innovation in the shaker screens field. Its mesh sizes are smaller and thinner than that of the steel frame shaker screen. The fine mesh sizes maximize the solids removal capabilities of the screen. It is suitable for various types of shakers, such as, linear motion shale shakers, elliptical and circular motion shale shakers.
Compared with the hook strip flat screen and hook strip soft screen, pyramid shaker screen has more available screening non-blank areas. Test has shown that, due to the screen’s corrugations, the capacity of the shaker gets about a three-fold improvement, while the screen still maintains the equivalent cut-point level of the flat shaker screen. It’s application reduces the number of shakers. Therefore, less space and less cost are realized. Three-dimensional shaker screen is absolutely a superior replacement screen for shale shakers.
| Item | Mesh | Dimension(L × W) | Approx Weight | Screen Layer | Screen Material | Frame Material |
|---|---|---|---|---|---|---|
| SJ-P01 | API 20–400 | 1050 × 695 mm | 6.6 kg | 2 or 3 | SS 304/316 | carbon steel |
| SJ-P-02 | API 20–400 | 1053 × 697 mm | 5.6 kg | 2 or 3 | SS 304/316 | carbon steel |
Specifications of pyramid shaker screen can be customized according to your needs.
Advantage
- More non-blanked screening area; faster flow rate.
- Improved screening structure, higher loading capacity.
- Enhanced permeability; higher screening efficiency.
- Smaller mesh sizes; better solid-liquid separation.
- Flexible to use; fit for various types of shakers.
- Small amplitude; high-frequency.
- Minimization of horseshoe effect.
- Excellent fluid handling capacity.
- Energy saving; cost effective.
Benefits of the pyramid design
- Three-dimensional structure largely increases the useful screen area and effectively improves the screen’s fluid handling capacity.
- Gravity and vibration force the fluid into the corrugated areas of the screen. More drilling fluids are allowed to pass through the screen.
- This type design enables screen to make solid-liquid separation as fine as 43 microns.
- The stereoscopic structure maximizes the solids removal efficiency and minimizes the fluid loss.
Applications
- Applied in the solid control system.
- Used as replacement screen for various shakers.
- Used in the oil industry for solid-liquid separation.
