Derrick 500 Series PMD

FOB Price
USD $10.00 / Piece
Place Of Origini
China
Minimum Order
100
Packaging
2 pcs per carton, packed in wooden case
Delivery
7-15work days
DERRICK

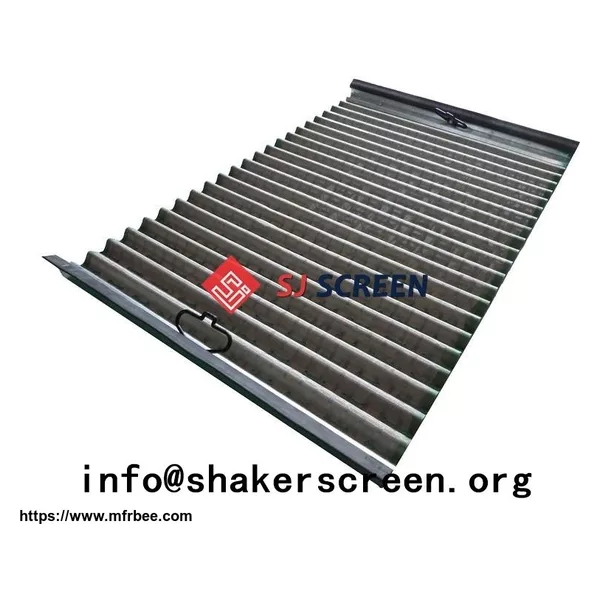

Derrick 500 Series PMD

Replacement PMD Screens for Derrick 500 Series Shale Shakers

Technical Parameter

  • Material:stainless steel 304/316/316 L.
  • Body Material:stainless steel plate.
  • Construction Type:PMD (pyramid).
  • API RP 13C Designation:API 20 – API 325.
  • Size:1050 × 695 mm.
  • Weight:6.6 kg.
  • Series:DX, DF, HP optional.
  • Color:green.
  • Package:2 pcs per carton, packed in per wooden case.

Derrick 500 PMD shaker screen replacementis manufactured for all Derrick 500 series shale shakers. Innovative tension fingers and two quick-lock 1/2 turn tension bolts on each screen panel make the installation faster, easier and more reliable. The bottom layer with low mesh counts is waved by coarse wires, then tightly bonded to the backing plate. It offers longer service life and maximizes the separation efficiency.

Adaptable Shale Shaker Model

SJ-PMD 500 shaker screens are used as the substitute screen for

  • Derrick FLC (Flo-Line Cleaner) 503 shaker.
  • Derrick FLC (Flo-Line Cleaner) 504 shaker.
  • Derrick FLC (Flo-Line Cleaner) 503 drying shaker.
  • Derrick FLC (Flo-Line Cleaner) 504 drying shaker.
  • Derrick FLC (Flo-Line Cleaner) 513 shaker.
  • Derrick FLC (Flo-Line Cleaner) 514 shaker.
  • Derrick FLC (Flo-Line Cleaner) 513 VE (Vapor Extraction).
  • Derrick FLC (Flo-Line Cleaner) 514 VE (Vapor Extraction).

Competitive Advantage

  • Resistant to corrosion, high temperature and collision.
  • Quick-lock tension system, excellent trapping (dreg) effect.
  • 56% more screen surface area than flat screens.
  • Maximize the solids removal capabilities.
  • Increase shaker capacity and reduce mud loss.
  • API RP 13C (ISO 13501) compliant.
  • Adequate inventory in the shortest time to meet customers' demand.
  • Warranty Period:1 year.
  • Working Life:400–450 hours.

Performance Parameter

Download Catalogue

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No. Non-Blank Area (sq.ft)
SJ-PMD 500-A325 DF API 325 0.39 44 2/3 7.09
SJ-PMD 500-A230 DF API 230 0.71 68 2/3 7.09
SJ-PMD 500-A200 DX API 200 1.32 73 2/3 7.09
SJ-PMD 500-A170 DX API 170 1.34 83 2/3 7.09
SJ-PMD 500-A140 DX API 140 1.89 101 2/3 7.09
SJ-PMD 500-A120 DX API 120 1.89 134 2/3 7.09
SJ-PMD 500-A100 DX API 100 2.66 164 2/3 7.09
SJ-PMD 500-A80 DX API 80 2.76 193 2/3 7.09
SJ-PMD 500-A70 DX API 70 3.33 203 2/3 7.09
SJ-PMD 500-A50 DX API 50 5.17 285 2/3 7.09
SJ-PMD 500-A40 DX API 40 8.64 439 2/3 7.09
SJ-PMD 500-A35 DX API 35 9.69 538 2/3 7.09
SJ-PMD 500-A20 DF API 20 10.88 809 2/3 7.09
* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

Show Details

Remarks:

Derrick, FLC 500, PMD, DX, DF, HP are marks of Derrick Corporation.

ShengJia only produces the replacement screens but not original from Derrick.
