Product sourcing details

FOB Price
USD $8.00 / Piece
Place of Origin
China
Packaging
2 pcs per carton, packed in per wooden case

Supplier: Anping Shengjia Hardware Mesh Co., Ltd.

Purchasing information

Minimum order
110
Lead time
7-15work days

Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.

Shale shaker screens

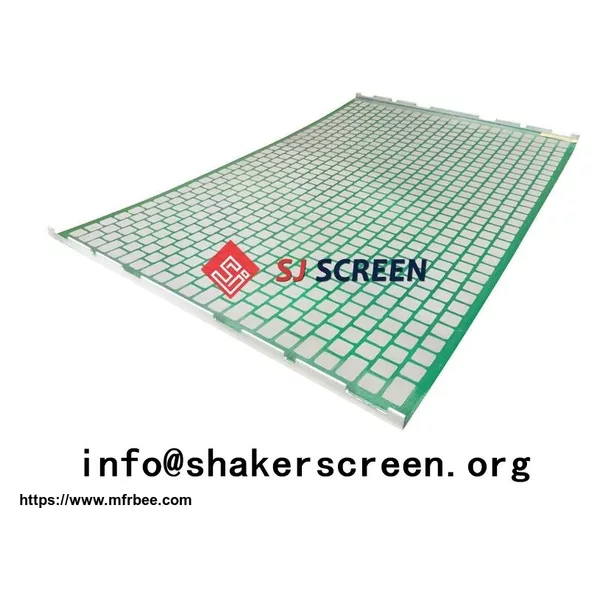

Replacement Screens for Derrick FLC 2000 / 48 × 30 Shale Shakers – PWP

Technical Parameter

  • Material:stainless steel 304/316/316 L.
  • Construction Type:PWP (perforated wear plate).
  • Perforated Mesh Shape:rectangle/hexagon.
  • API RP 13C Designation:API 120 – API 400.
  • Size:1050 × 695 mm.
  • Weight:4.6 kg.
  • Series:DX, DF, HP optional.
  • Color:green.
  • Package:2 pcs per carton, packed in wooden case.

SJ-PWP 2000 shale shaker screens, also famous known as 48-30 screens, are compatible with Derrick FLC (Flo-Line Cleaner) 2000 series shale shakers. It is a hook strip flat type shaker screen, which is constructed of multiple stainless steel 304 or 316 wire mesh cloth layers. And then bonded to a rectangular or hexagonal perforated metal plate for added support and facilitation of repair.

Adaptable Shale Shaker Model

SJ-PWP 2000 shaker screens are used as the substitute screen for

  • Derrick FLC (Flo-Line Cleaner) 2000 3-panel shaker.
  • Derrick FLC (Flo-Line Cleaner) 2000 4-panel shaker.
  • Derrick 48-30 shale shaker.
  • Derrick FLC (Flo-Line Cleaner) 2000 series mud cleaners.
  • Derrick FLC Plus, FLC with AWD, HI-G dryer.

Competitive Advantage

  • Manufactured according to the API RP 13C (ISO 13501).
  • Top quality stainless steel wire mesh for longevity.
  • Increase shaker capacity and reduce mud loss.
  • Scientific & reasonable cost control system for competitive price.
  • Higher flow rates without sacrificing cut point integrity.
  • Adequate inventory in the shortest time to meet customers\' demand.
  • Warranty Period:1 year.
  • Working Life:400-450 hours.

Performance Parameter

Download Catalogue

Screen DesignationMesh TypeAPI RP 13C DesignationConductance NumberD100 Separation (microns)Layer No.Non-Blank Area (sq.ft)
SJ-PWP 2000-A325DFAPI 3250.29442/35.3
SJ-PWP 2000-A270DFAPI 2700.31572/35.3
SJ-PWP 2000-A230DFAPI 2300.59682/35.3
SJ-PWP 2000-A200DXAPI 2000.73732/35.3
SJ-PWP 2000-A170DXAPI 1700.85832/35.3
SJ-PWP 2000-A140DXAPI 1401.431012/35.3
SJ-PWP 2000-A120DXAPI 1201.461342/35.3
SJ-PWP 2000-A100DXAPI 1001.81642/35.3
SJ-PWP 2000-A80DXAPI 802.481932/35.3
SJ-PWP 2000-A70DXAPI 702.672032/35.3
SJ-PWP 2000-A60DXAPI 603.562682/35.3
SJ-PWP 2000-A50DXAPI 504.192852/35.3
SJ-PWP 2000-A40DXAPI 406.774392/35.3
SJ-PWP 2000-A35DXAPI 357.245382/35.3
SJ-PWP 2000-A20DFAPI 2014.358092/35.3

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.

Show Details

Remarks:

Derrick, FLC 2000, PWP, DX, DF, HP are marks of Derrick Corporation.

ShengJia only produces the replacement screens but not original from Derrick.
