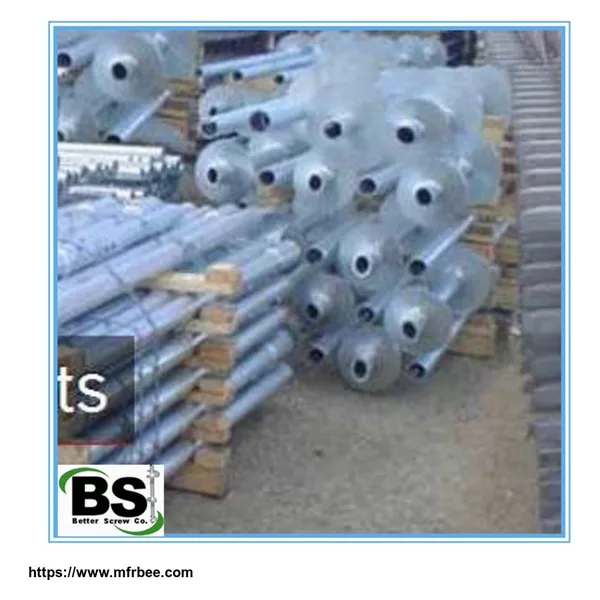

A helical pile is an extendable deep foundation system

FOB Price
USD $21.68 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1000
Packaging
25 pcs per bundle
Delivery
15 Days
Helical piles, also known as anchors, screw piles or helical piers, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and most importantly transfers the weight of the structure to load bearing soil.

Helical piles have been used all over the world to secure residential and commercial buildings. Originally designed for lighthouses they are widely used for many other deep foundation applications.

Shaft Size (inch) Wall Thick(inch) Helix Thick(inch) Lead Length(ft) Helix Size(inch) Extension Length (ft)
2.875 OD. 0.262 3/8 or 1/2 3ft/5ft/7ft/10ft 8/10/12/14 3ft/5ft/7ft/10ft
3.00 OD. 0.238 3/8 or 1/2 3ft/5ft/7ft/10ft 8/10/12/14 3ft/5ft/7ft/10ft
3.50 OD. 0.254/0.300 3/8 or 1/2 3ft/5ft/7ft/10ft 8/10/12/14 3ft/5ft/7ft/10ft
4.50 OD. 0.290/0.337 3/8 or 1/2 5ft/7ft/10ft/12ft 8/10/12/14 3ft/5ft/7ft/10ft
5.50 OD. 0.362 3/8 or 1/2 5ft/7ft/10ft/12ft 8/10/12/14 3ft/5ft/7ft/10ft
6.625 OD. 0.562 3/8 or 1/2 5ft/7ft/10ft/12ft 8/10/12/14 3ft/5ft/7ft/10ft

  • Country: China (Mainland)
  • Business Type: 生产厂家,贸易公司,分销商/批发商
  • Market:美洲,欧洲,大洋洲
  • Founded Year:2005
  • Address:
  • Contact:Cheryl Duan
