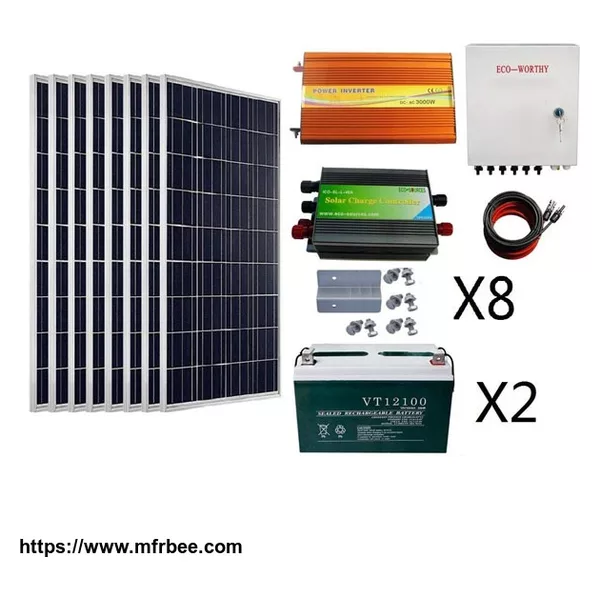

800 Watts Complete Off-Grid Polycrystalline Solar Power System

Features

1. Great for camping or remote cabins. Power devices in remote backcountry locations.
2. High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output. 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate.
3. Controller Connection: SOLAR for solar panels, LOAD for DC appliances, BATTERY for battery.
4. Inverter Connection: DC port be connected with the battery, AC output be connected with AC appliances.

Specification

1. 100AH Battery

Normal Voltage: 12V
Rated Capacity(20hr): 100AH
Battery Cell Type: Lead Acid
Weight:28kg(61.7lbs)
Battery Dimensions: 330mm x 175mmx190mm(13”*6.9”*7.5”)

2. 100W Poly Solar Panel

Related power: 100W
Open circuit voltage (Voc): 21.6V
Max power voltage (Vpm): 18V
Short circuit current (Isc): 6.11A
Working current (Iop):5.55A
Output Tolerance: ±3%
Temperate coefficient of Isc: (0.10+/- 0.01 )%/ ℃
Temperate coefficient of Voc: – (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc: -0.47%/℃
Temperature range: -40℃~+80℃
Frame: Heavy duty aluminum
Kind of connection: waterproof junction box, can be customized
SLA Battery Voltage: 12V
Size: 39.3*26.2*1.38in (996*665*35mm)

3. 3000W 24V-110V Off Grid Pure Sine Wave Inverter

Output voltage: 110V AC
Continuous power: 3000W
Surge power: 6000W
Waveform: Pure sine wave
Input Range: 21-30VDC
Working Input: 24VDC
Fuse: 35A
Low battery alarm: 10.5+0.3V
Over voltage shut down: 15.5+0.5V
Over load shut down: 3600W over 10 seconds
Over heating shut down:>75℃
Over Thermal Protection: shut down the output
Working Temperature: -10℃~+50℃
Frequency: 60Hz

4. Solar Combiner Box

Model: ECO—PV6
Input Circuits/Circuit Breakers: 6
Circuit Breaker Rating: 10A
Max Total DC Output Current: 60A
Max Input Voltage Rating: 250V
Max Output Voltage Rating: 250V
Protection Grade: IP65
Operational Environment Temperature: -30℃~+70℃
Relative Humidity: 0-95%
Cooling Method: Natural Cooling
Surge Lightning Protection: Yes
Dimensions: 10.3″x12.6″x4.5″

5. 45A Charge Controller

Maximum Charging Current: 45A
Rated Voltage: 12V/24V
Charging Circuit Voltage: <200mv
Charge-Off Voltage: 13.7v/27.4v
Load Off Voltage: 10.5V/21V
Load On Voltage: 12.6V/25.2V
MAX Solar Panel: 540W/1080W
