Features
1. This system can be placed on a houseboat with the turbine generator. You can use wind and solar simultaneously to charge the battery bank.
2. The controller is 12V/24V autodetect, please connect the battery to the controller firstly, and then connect the solar panel and wind turbine with the controller.

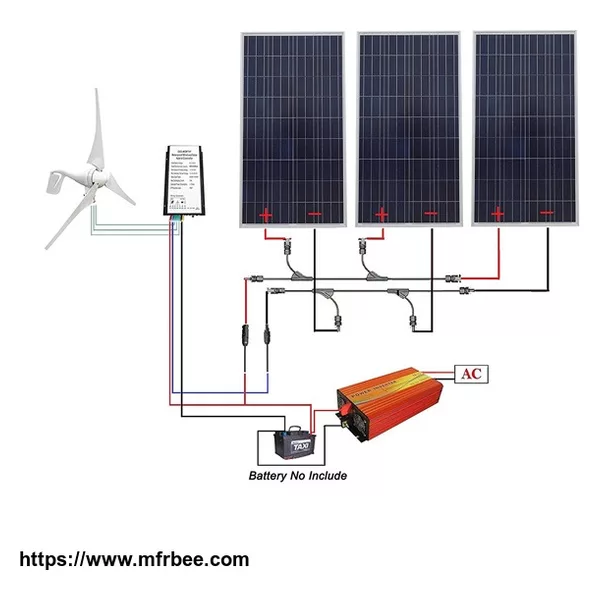

3. Controller connection: Red wire is positive for all connections; Black wire connect with battery negative; Green wires connect with the wind turbine (in no particular order); Blue wire
connects with the solar negative; Yellow wire connect with 12V/24V DC devices.
4. The cable connector included is for connecting the solar panels with the controller, you need to get other cables (14awg suggested) to connect the turbine with the controller.
5. High-performance nylon fiber blades by precision molding injection. It’s designed for both land and marine.
Specification
150W Poly Solar Panel
Rated power:150W
Open circut voltage (Voc):22.4V
Max. Voltage (Vmp):18V
Short circuit current (Isc):9.20A
Max.current (Imp):8.33A
Cell Efficiency(nc):17%
Cell Size:6*6inches/156*156mm
Number. type and arrangement of cells:36pcs Poly-Crystalline Silicon(4*9)
Module Efficiency(nm):15.1%
Max-System Voltage(VDC):1000v
Output Power Tolerance:±3%
Temperate coefficient of Isc:+0.05%/ ℃
Temperate coefficient of power Voc:-0.38%/℃
Operating Temperature range:-40℃~+90℃
SLA Battery Voltage:12V
Size:59.1″*26.4″*1.6″ (1500*670*40mm)
Weight:26.5lbs/12kg
Cable Length:35.4inches/900mm
400W Wind Turbine
Nominal Voltage:12-24V
Cut-in Wind Speed:2.5m/s
Rated wind speed:10.5m/s
Maximum wind speed:35m/s
Rated Rotate Speed:800r/min
Battery capacity:200AH-400AH
Fan blade quantity:3pcs
Wind leaf material:Carbon fibre composite
Rotor diameter:1.2M
Tower diameter:Suggest more than 48mm
Altitude of towe:4.5M-10M
control system:Automatic fan dedicated controller
Generator style:Permanent-magento-phase A.C
Net weight:17.64lbs (8kg)
Packing: 27.1″*14.4″*8.3″ (687*365*210mm)
1000W Pure Sine Wave Inverter
Output Volt:110VAC
Continuous Power:1000W
Surge Power: 2000W
Frequency:60Hz
Efficiency:>90%
USB Output:5V
Input Range:10-15VDC
Working Input:12VDC
Fuse:35A
Low Battery Alarm:10.5+0.3V
Low Battery Shut Down:10+0.5V
Over Voltage Shut Down:15.5+0.5V
Over Load Shut Down:120W over 10 second
Over heating shut down:>75℃
Over Thermal Protection: Shut down the output
Working Temperature:-10℃~+50℃
The Eco-Sources pre-packaged 700 Watts Off Grid solar & wind powered hybrid system including 1pc 400W wind turbine generator with the hybrid controller, 2pcs 150W poly solar panels, 1pc 24cm cable with MC4 connector. Perfect for household daily use. Features 1. The charge ...
