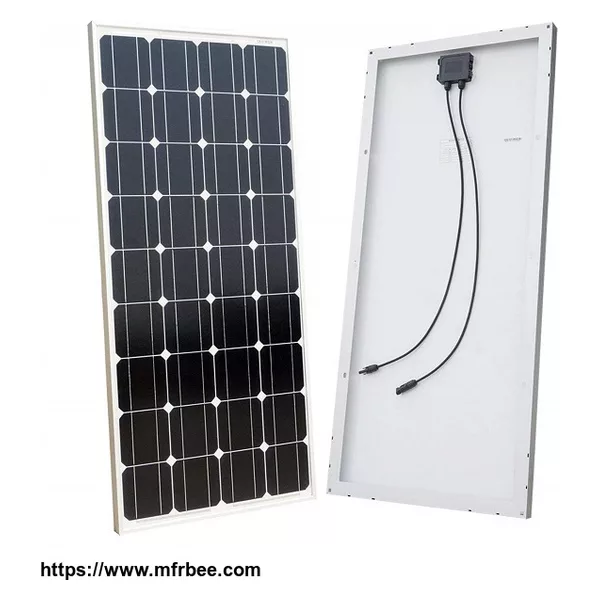

100W 12V Monocrystalline Solar Panel Kit

Minimum Order
100
Place Of Origin
China
Packaging
N/A
Delivery
15 Days
The Eco-Sources 100W Monocrystalline starter kit is designed specifically for customers new to solar. It is great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins – providing many benefits, including, but not limited to, quiet power production and grid independence.

Features

1. Complete solar kit: 1pc 100W Mono Solar Panel + 20A PWM LCD Display Solar Controller Regulator + Solar Cable with MC4 Connectors. Basic component for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. Easy to install with pre-drilled holes on the back of the panel for fast mounting and securing
2. High modules conversion efficiency. Ideal daily output: 500Wh (depending on the availability of sunlight).
3. Comes with 20A PWM LCD display charge controller, you can expand your system up to a maximum of 400W.
4. 5 meters red 4mm² extension solar cable with mc4 connector and 5 meters black 4mm² extension solar cable with mc4 connector for connecting solar panel to charge controller.
5. Corrosion-resistant aluminum frame for extended outdoor use, allowing the solar panel to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).

Specification

100W 12V Monocrystalline Solar Panel

Rated power 100W
Voc 21.6V
Vop 17.9V
Short circuit current (Isc) 6.13A
Working current (Iop) 5.78A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃ to +80℃
Frame Heavy duty aluminum
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 1210x541x35mm
Weight 24lbs(11KG)
Warranty 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate
5-year material and workmanship warranty

20A LCD Charge Controller

1. Rated Discharge Current: 20A.
2. Easy to use: Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc.
3. Battery Voltage: 12V/24V.
4. Auto adjustable power rate with dual USB ports.
5. 4-Stage(EQU, Bulk, ABS, Float) charge management and 4-Stage PWM charge.
6. Automatically manage the working of solar panel and battery in the solar system.
7. USB Output Voltage: 5V/3A.
8. Two USB socket can charge two devices simultaneously (Note: power from the batter, not from the solar panel)
