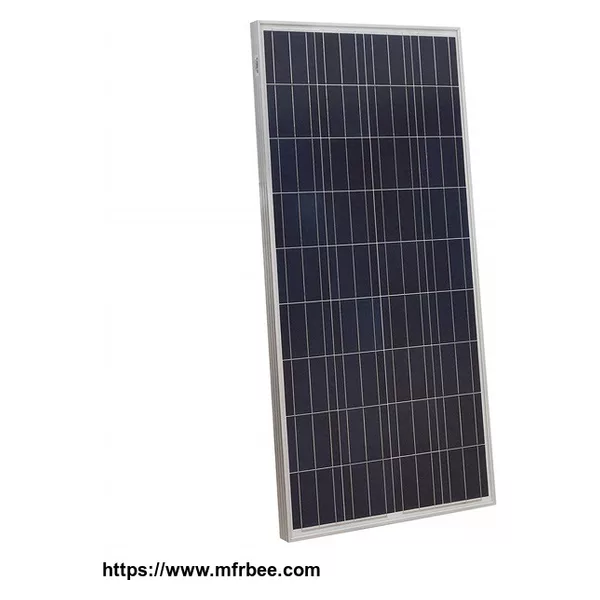

150 Watt Polycrystalline Solar Panel Module
Product Quick Detail
- Minimum Order
- 100
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Features
1. High conversion efficiency 150-watt polycrystalline solar panel for RVs, cabins, homes, boats, back-up and remote power use. Perfect for 12-volt battery charging or multiple panels can be
wired in series for 24/48-volt battery charging or for grid-tied applications
2. Easy to install with pre-drilled holes on the back of panels for fast mounting and securing. Each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.
3. By-pass diodes are pre-installed in the waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments.
4. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized
aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).
5. One year warranty, please feel free to contact us if there are any questions.
Specification
| Rated power | 150W |
| Voc | 22.41V |
| Vop | 17.9V |
| Short circuit current (Isc) | 9.87A |
| Working current (Iop) | 8.89A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ ℃ |
| Temperate coefficient of Voc | – (0.38 +/-0.01 )%/ ℃ |
| Temperate coefficient of power Voc | -0.47%/℃ |
| Temperature range | -40℃to +80℃ |
| Frame | Heavy duty aluminum |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | SIZE 1 : 665*1450*35mm (26.3*57.3*1.38 in) |
| Dimensions (L x W x H)mm | SIZE 2 : 730* 1515*65 mm( 28.7*59.6*2.55in) |
| Weight | 28.7lbs(13KG) |
| Warranty |
25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
