100W 12V Bendable Lightweight Thin Monocrystalline Flexible Solar Panel

Features

1. This powerful 100w solar panel size is 41.7*20.86*1.12” with lightweight 3.97lbs(1.8kg), making it easier to transport, hang and remove.
2. This flexible panel contains 32 efficient monocrystalline solar cells. It can be curved to a maximum 30-degree arc, perfect for outdoor working, traveling and camping.

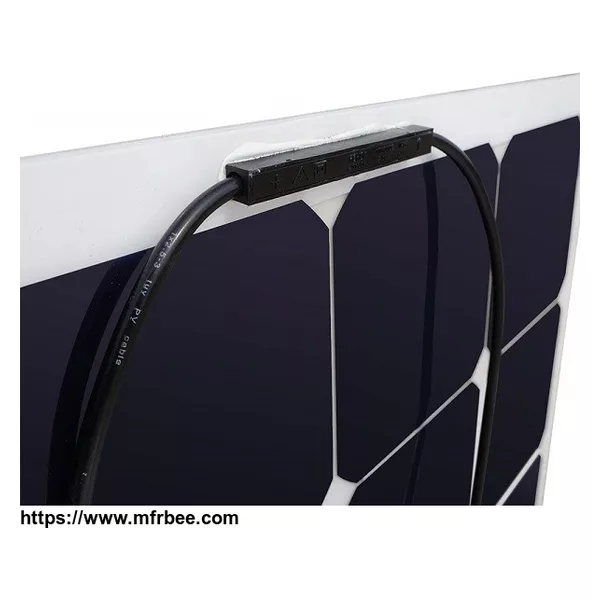

3. Sealed waterproof junction box within diode, makes charging battery safer and a pair of 39.3 inches cables with MC4 connectors make install easily.
4. Easy install with 6 pre-drilled metal reinforced mounting holes, this solar panel can be affixed by adhesive, grommets, zip ties, It can be installed without costly structural roof reinforcements.
5. Suitable for crowded areas or irregular surface that are typically off limits for traditional glass and aluminum models. Applicable for RV, boat, cabin, tent, yachts, car, trucks, trailers, etc.

Specification

Electrical Characteristics

Maximum Power at STC (Pmax):100 W
Optimum Operating Voltage (Vmp):17.60 V
Optimum Operating Current (Imp):5.83A
Open Circuit Voltage (Voc):21.10V
Short circuit current (Isc): 6.11A
Cell Efficiency: 22.0%
Maximum System Voltage:1000 V DC (IEC) / 600 V DC (UL)
Maximum Series Fuse Rating:20A
Power Tolerance:±5 %
Standard Test Conditions(STC): irradiance 1000 W/m2, module temperature 25 °C, AM=1.5

Mechanical Characteristics

Quantity of cell: 32pcs(4×8)
Size: 41.7″x 20.86″x1.12″(1060 × 530× 2.8mm)
Weight: 3.97lbs(1.8 kgs) 4
Length of Cables: 4.0 mm2,symmetrical lengths(-)1000mm and (+)1000mm
Output Cables TUV (2Pfg1169:2007), UL 4703, UL 44
Front Glass: PET
Junction Box: IP67 rated black
Connectors SOLAR MC4: integrated twist locking connectors Temperature Characteristics
Operating Module Temperature:-20 °C to +65 °C
Nominal Operating Cell Temperature (NOCT):25±2°C
Temperature Coefficient of Pmax:-0.44 %/°C
Temperature Coefficient of Voc:-0.33 %/°C
Temperature Coefficient of Isc:0.055 %/°C

Fixing Methods

1. Permanet: This solar panel can be affixed by adhesive, grommets, zip ties. Installed without costly structural roof reinforcements.
2. Removable: Fitted wtih a velcro type fixing system.
