Diamond-Strut Plank Grating

Diamond-Strut plank grating

Diamond plank grating has a wide range of widths - from 4 3/4\" (2-Diamond) to 24\" (10-Diamond) for different applications. For example, standardwalkway grating

Product descriptions:

• Item: Diamond-Strut plank grating.
• Width: 2-Diamond - 4 3/4\", 3-Diamond - 7\", 4-Diamond - 9 1/2\", 5-Diamond - 11 3/4\", 8-Diamond - 18 3/4\", 10-Diamond - 24\".
• Channel depth: 1-1/2\", 2\" and 2-1/2\".
• Length: 10\' or 12\' or cut to size.
• Material options:
  • Pre-galvanized plain steel: 12 or 14 ga.
  • HRPO plain steel: 12 or 14 ga.
  • Aluminum alloy 5052-H32: .080\" or .100\" thickness.
  • Stainless steel Type 304 or Type 316L: 16 ga.

Features & benefits:

• High strength-to-weight ratio for high load capability.
• Economical cost and long life span.
• Little maintenance after installation.
• Suitable for interior and exterior applications.
• Available bolted, clamped or welded into most existing supports.

Applications:

• Catwalks.
• Walkways.
• Stair treads.
• Flooring.

DSP-02: Truck safety grating step.

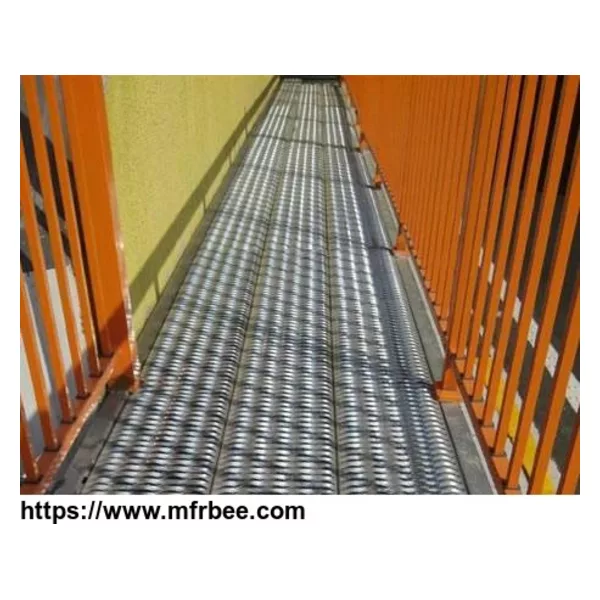

DSP-03: Diamond-Strut catwalk plank grating.
