1.Brief Introduction of Portable Spectrophotometer

Our portable pantone spectrophotometer adopts high technology from overseas.It tests based on the condition of D/8 that is internationally used.Our device is widely used for color measurement of any industry especially for painting,textile, plastic cement, food, building material and other products’ color quality control. It could connect with color matching software to get formular.

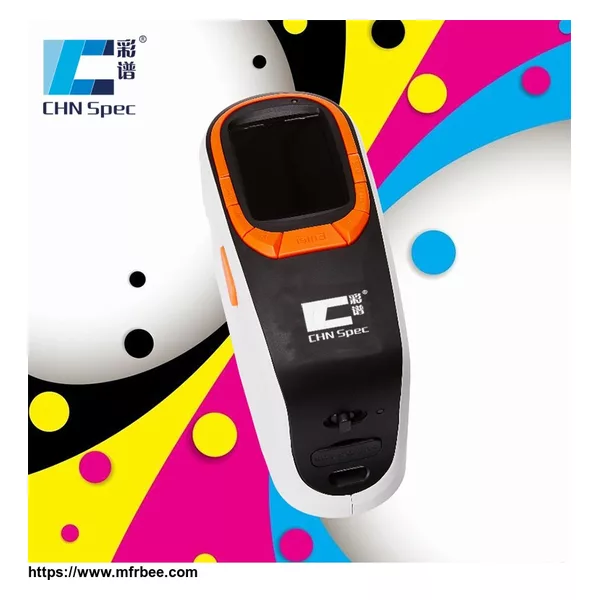

The following are the color measuring equipment pictures.

2.Advantages of Portable Spectrophotometer

1).Obtained Metrology Accreditation Certificate in China

2).Large data storage space

3).Large TFT display screen

4).Modern and fashionable design based on human engineering

5).Easy to operate and compact operation interface

6).Pre-locating panel design for easy instrument calibration

7).Uses LED light source; high capacity rechargeable lithium-ion battery

8).Can measure both SCI(specular included)and SCE(specular excluded) at the same time

9).Includes PC software to manage data

10).Can connect to micro-printers for printing

11).Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate

12).PC software for easy measurement data management

13).Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample

3.Application of Portable Spectrophotometer

1).It can be applied to laboratories, factories and others field that need color testing;

2).Allows medium and small companies to obtain high performance color management system;

The following are application of our Spectrophotometers

4.Portable Spectrophotometer Technical Data

Type	CS-600A/B (A and B are for different testing diameters.)
Illumination	d/8(Diffused lighting, 8 degrees observe angle),SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement.(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphere	Φ40mm,Alvan diffused reflection surface coating
Illumination Light source	CLEDs(entire wavelength balanced LED light source)
Sensor	dual light path sensor array
Wavelength Range	400-700nm
Wavelength Interval	10nm
Half spectral width	5nm
Reflectivity range	0-200%
Reflectivity resolution	0.01%
Observation angle	2°/10°
Measurement light source	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Data being displayed	SPD distribution/data,sample\'s color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measurement time interval	0.5 seconds
Measurement time	1 second
Color space	CIE-Lab, LCh, Luv, XYZ, Yxy, Reflectance, Hunterlab,Munsell MI,CMYK
Color difference formulas	ΔEab, ΔECH, ΔEuv, ΔEcmc(2:1), ΔEcmc(1:1),ΔE94,ΔE*00, ΔEab(Hunter),555,color classification
Other colorimetric indices	WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness, ISO luminance, 8 gloss, A density, T density
Repeatability	light splitting reflectivity:standard deviation within 0.08%
color values:ΔE*ab Maximum:0.05
Battery capacity	rechargeable, 10000 continuous tests, 7.4V/6000mAh
Interface	USB
Data storage	20000 test results
Light source longevity	5 years, 1.5 million tests
Inter-instrument agreement	ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Size	18173112mm(LWH)
Weight	about 550g(does not include battery\'s weight)
Display	True color screen that includes all colors
Work temperature range	0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Storage temperature range	-25℃ to 55℃,relative humidity 80% or below(at 35°C ),no condensation
Standard accessories	DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts
Optional accessories	powder molding device, micro printer, measurement and test report
Color matching system	match
UV light source	without UV light source

Packaging & Shipping

Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Line
1	Operating Manual	1	USB Cable
1	Driving Software	1	Black/White Calibration Tile
1	Color QC Software	1	Verification Certification
1	Packing List	1	Warranty Card
