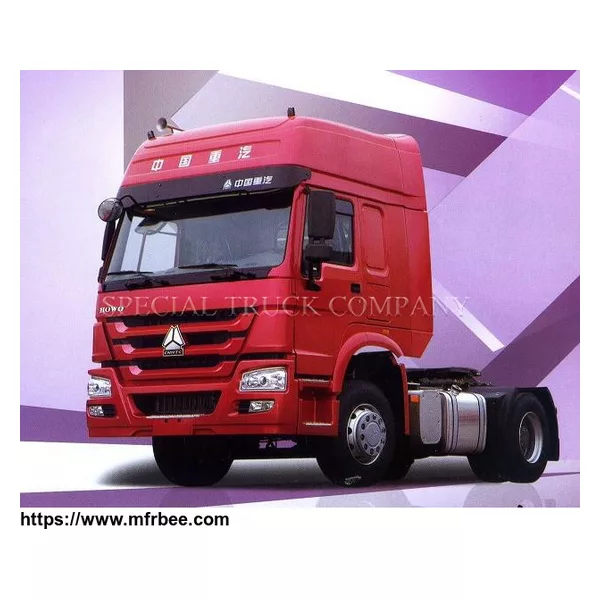

| ZZ4257N3241W |
| Engine | WD615.69, Euro II emission standard 6-cylinder in -line with water cooling, turbo-charging and intercooling Maximum output: 336hp at 2200 rpm Maximum torque: 1300 Nm at 1300-1600 rpm Bore: 126mm Stroke: 130mm Compression ration: 38.1 : 1 Specific fuel consumption: 198 g/kWh Engine oil filling quantity: 19 L | Chassis | Frame: U-profile parallel ladder frame with section of 300×80×8 mm and reinforced subframe, all cold riveted cross members Fifth wheel size: 2 inch Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double -action shock absorbers and stabilizer Rear suspension: 12 leaf semi-elliptic springs with bogie springs Aluminum fuel tank: 350 L capacity with locking fuel cap, fitted to the off side of the chassis Option: 3.5 inch fifth wheel |
|
|
|
|
|
|
|
|
|
|
| Clutch | Single-plate dry coil-spring clutch, diameter 420 mm hydraulically operating with air assistance | Steering | ZF power steering, model ZF8098, hydraulic steering |
| Tyres | 12.00R20 |
| Transmission | ZF transmission, synchromesh, 9 forward & 1 reverse | Cab | Long cab, all-steel forward control |
| Front Axle | Steering with double T-cross section beam | Dead weight | 9180 kg |
| Rear Axles | Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles Ratio: 4.80 Option: single reduction axles , ratio: 4.22 | Gross vehicle weight | 32000 kg |
| Max speed | 102 km/h |
| Fuel consumption | 35 L/km |
| Overall dimension | 6800×2496×3718 |
