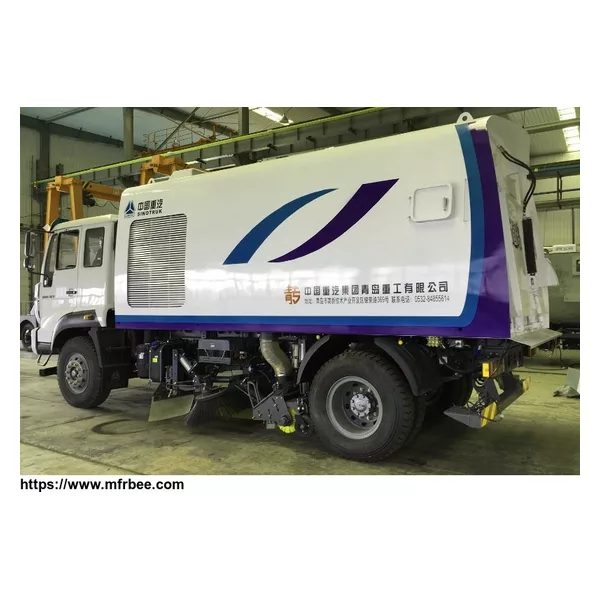

ROAD SWEEPER TRUCK SINOTRUK QDZ5160TSLZ

Chassis parameter

Driving Type: 4x2 Model: ZZ5164K4516C1/G1W6Y-45

A. Engine: YC6J190-33，190HP

B. Clutch: 395mm

C. Transmission: HW65506TC

D. Front Axle: 1094,( spring center distance 880, spring end distance2268.4,φ285.75)

E. Rear Axle: 153 single rear axle ( wheel track 1860,four holes, ratio:5.571)

F. Frame: O45/4x2 frame assembly/width 865mm/rear suspension 2000mm

G. Front Suspension: ( width 865, height 237, frame 7+4, strengthened leaf spring)

H. Rear Suspension:( width 865, 153 casting axle, strengthened leaf spring )

I. Tank: Fuel System(4X2，200L Right Aluminum Alloy Fuel Tank,4E)

J. Steering: GC100-15

K. Tire: 10.00-20

L. Cab: L2000, A/C

M. PTO: HW45YC-N300

VEHICLE BODY PARAMETER

A. Sweeping Brush Diameter: 850mm

B. Sweeping Brush Max. Rotating Speed:110rmp

C. Sweeping Brush Intermediate Rotating Speed: 90rpm

D. Sweeping Brush Min. Rotating Speed: 65rpm

E. Garbage Box Available Volume: 6.5m3

F. Water Tank: 2200L

G. Max. Discharge Angle: 50°

H. Sweeping Width:3500mm

I. Sweeping Speed:7-15km/h

J. Max. Sweep Capacity: 52500㎡

K. Max. Particle Diameter: 120mm

L. Vice Engine: 4BTAA3.9

M. Working Mode: Rain Mode/ Dust Suppression Mode/ Super Dust Suppression Mode

N. Sweeping Mode:left sweep, right sweep,suction&sweep combined mode

O. Garbage Box Max. Volume: 8.8m3
