CURVY WIRE MESH FENCE

FOB Price
USD $100.00 / Piece
Place Of Origin
100
Minimum Order
100
Packaging
100
Delivery
15 Days

CURVED WIRE MESH FENCE – ELECTROSTATIC SPRAYING & HOT DIPPED GALVANIZED

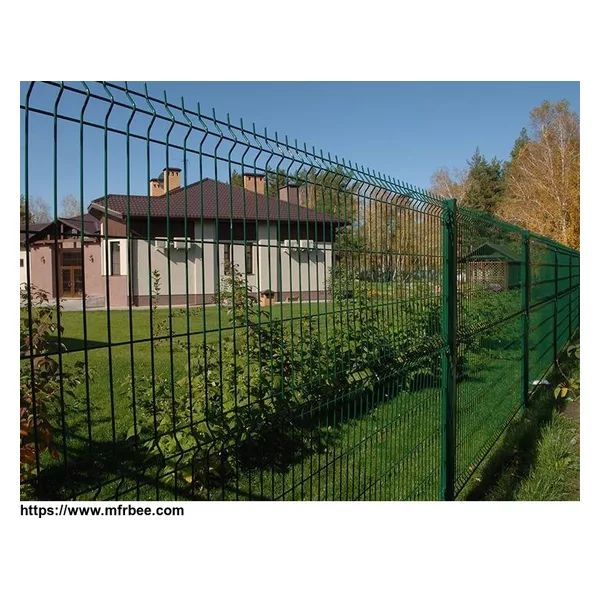

CWMF-01: The security fencing is used to protect grassland and residence.

Curvy wire mesh fence, also called 3D security fence, security fencing and wire mesh fence, is made from low carbon steel wire or galvanized wire. The curve quantity varies according to the fence height.

The curvy wire mesh fence system is consisted of wire mesh fence panel and post, and the two parts are connected together with accessories. Because of its stable, durable and flexible structure, the curved wire mesh fence is widely used in garden, factory, railway, highway or any other place that would not like visitors.

FEATURES

  • High strength and rigidity because of its triangular bending structure.
  • Firm structure and strong welding spot for durability.
  • Corrosion, rust and weather resistance.
  • High adaptability, which makes the fence can be installed in various ground, such as concrete, sandy, or rocky ground, etc.
  • Strict quality control.
  • Easy to install, the curved wire mesh panel can be connected with the post easily.
  • Beautiful appearance, V-shape bending and various colors.
  • Long service life, because of its firm structure and good coating corrosion resistance.

SPECIFICATION OF CURVED WIRE MESH FENCE

  • Material: low carbon steel wire or galvanized wire.
  • Color: green, blue, white, gray or customized according to RAL colors.
  • Wire diameter: 3–8 mm.
  • Mesh size: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm.
  • Panel height: 0.63–2.43 m (standard) or customized.
  • Panel length: 2–3 m or customized.
  • Curve quantity: 2, 3 or 4.
  • Post type: peach post, square post, rectangular post and round post.
  • Production process:
    • Low carbon steel → Welded → Electrostatic spraying.
    • Galvanized wire → Welded → Electrostatic spraying.
    • Low carbon steel → Welded → Hot dipped galvanized.
Table 1: Wire Mesh Panel Sizes and Curve Quantity
Item Panel Height(m) Panel Length(m) Curve Quantity
CWM-01 0.63 2.0/2.2/2.5/3.0 2
CWM-02 0.83 2
CWM-03 1.03 2
CWM-04 1.23 2
CWM-05 1.43 2
CWM-06 1.63 2/3
CWM-07 1.83 3
CWM-08 2.03 3/4
CWM-09 2.23 4
CWM-10 2.43 4

CWMF-04: Different curves in different fence height for optimum strength.

POST TYPES

POST SPECIFICATION

Post type Post size
Peach post 50 × 70 × 1.2 mm
70 × 100 × 1.2 mm
Round post 60 × 1.5 mm
60 × 2.0 mm
Square post 60 × 60 × 1.5 mm
60 × 60 × 2.0 mm
60 × 60 × 2.5 mm
80 × 80 × 2.5 mm
Rectangular post 40 × 60 × 1.5 mm
40 × 60 × 2.0 mm
60 × 80 × 1.5 mm

FENCE FITTINGS

APPLICATION

The curved wire mesh fence is widely used in various land surface, such as general ground, slope, residence, garden engineering and so on. The detailed applications are as follows:

  • Various terrain: flat ground, slope and mountains.
  • Different land conditions: soil, concrete and rock.
  • Varied application scenarios: garden, playground, residence, farmland, etc.

PACKAGE

Plastic film then wooden pallets or customized.

  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Africa,Americas,Emerging Markets,Europe,European Union,G20
  • Founded Year:
  • Address:Industrial Park, Anping County, Hengshui City, Hebei Province, China
  • Contact:hui zhang
