HINGE JOINT FENCE

Minimum Order
1
Packaging
N/A
Delivery
15 Days

HINGE JOINT FENCE – ONCE INSTALL, COST EFFECTIVE & DURABLE AGAINST HIT

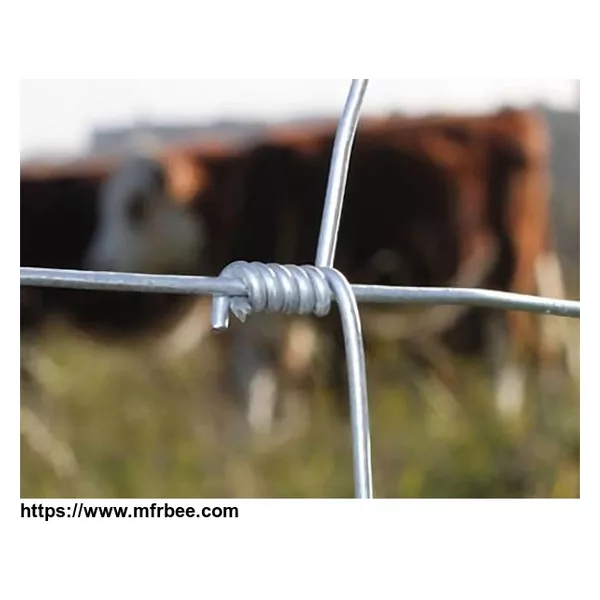

HJF-01: Galvanized steel hinge joint fence.

Hinge joint fence also known as hinge knotted field fence. Galvanized steel stay wire are individually cut and wrapped on the horizontal line wire, the robust hinge joints eliminated unwieldy wraps, twists and ties. The unique sturdy but flexible structure provide maximum strength and tensile strength to withstands impact from horse, cows, pigs, deer and goats.

The height, length, and wire diameter are all can be customized by your request. Here is your best choice of hinge joint field fence for grass field husbandry, ranch, forestry center, autobahn and so on.

LIGHT DUTY HINGE JOINT FENCE

Lighter grade field fence for less destructive applications. Generally recommended for sheep and goats.

  • Top and bottom wire
    • Diameter: 2.5 mm.
    • Tensile strength: ≥ 710 N/mm2.
  • Other wires
    • Diameter: 1.9 mm.
    • Tensile strength: 440–540 N/mm2.

HJF-02: Light duty hinge joint fence diagram.

Table 1: Specification of Light Duty Hinge Joint Fence
Type Fence height (cm) Horizontal wire No. Vertical wires spacing (cm) Roll length (m)
200/24/15 200 24 15/20/30 optional 50-300
200/20/15 200 20 15/20/30 optional 50-300
200/17/15 200 17 15/20/30 optional 50-300
148/18/15 148 18 15/20/30 optional 50-300
147/10/30 147 10 15/20/30 optional 50-300
122/9/15 122 9 15/20/30 optional 50-300
100/14/15 100 14 15/20/30 optional 50-300
100/8/15 100 8 15/20/30 optional 50-300
80/8/15 80 8 15/20/30 optional 50-300
60/6/15 60 6 15/20/30 optional 50-300


HEAVY DUTY HINGE JOINT FENCE APPLICATION

SUPER HEAVY DUTY HINGE JOINT FENCE

Generally recommended for horse.

  • Top and bottom wire
    • Diameter: 4.0 mm.
    • Tensile strength: ≥ 710 N/mm2.
  • Other wires
    • Diameter: 3.0 mm.
    • Tensile strength: 440–540 N/mm2.

HJF-10: Super heavy duty hinge joint fence diagram.

Table 3: Specification of Super Heavy Duty Hinge Joint Fence

HJF-14: Special grade hinge joint fence diagram.

Table 4: Specification of Special Grade Hinge Joint Fence
Type Fence height (cm) Horizontal wire No. Vertical wires spacing (cm) Roll length (m)
200/14/30 200 14 15/20/30 optional 50-300
200/20/30 200 20 15/20/30 optional 50-300

SPECIAL GRADE HINGE JOINT FENCE APPLICATION

TESTING OF HINGE JOINT FENCE

PRODUCTION AND PACKING DETAILS

Galvanized steel wire – mesh weave – finished product – stock – packing – loading

  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Africa,Americas,Emerging Markets,Europe,European Union,G20
  • Founded Year:
  • Address:Industrial Park, Anping County, Hengshui City, Hebei Province, China
  • Contact:hui zhang
