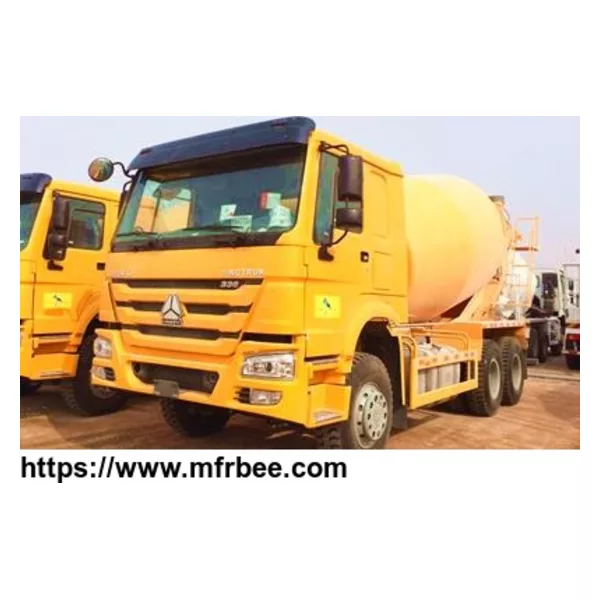

HOWO CONCRETE MIXER TRUCK QDZ5250GJBA

Place Of Origin
QINGDAO, CHINA
FOB Price
USD $48,000.00 / Piece
Minimum Order
1
Packaging
packed in nude for ro-ro shipment
Delivery
25 Days
Agitating capacity: 6M3/7M3/8M3
Geometric volume: 9.8M3/11.42M3/13.5M3
Steering: ZF8118(LHD) / ZF8098(RHD)
Engine: Brand SINOTRUK, Euro Ⅱ/ Ⅲ / Ⅳ ( optional)
Maximum Output: 266-420HP
Rated engine power: 196-301/2200
Gross Vehicle Weight: 25000kg
Kerb Weight: 12600kg-13800kg
Tyres: 12.00R20 (optional)
Cab: HW76 single bed ( optional), Air-condition
Transmission: HW19710 (10forward,2reverse)
Maximum Speed: 90 km/h
Front Axle: HF9, Max.loading:9000kg
Rear Axle: HC16,Ratio:5.73, Max.loading:16000kg
Pump & Motor: ARK ( from Italy)
Reducer: PMB ( from Italy)
Discharging remain ration <0.2%
Discharging speed: ≤2M3/min
Stuffing Volume: 61.23%/61.3%/59.3%
Estimated Overall Dimension: 7870(8375)*2550*3600(3853) mm
