Introduction

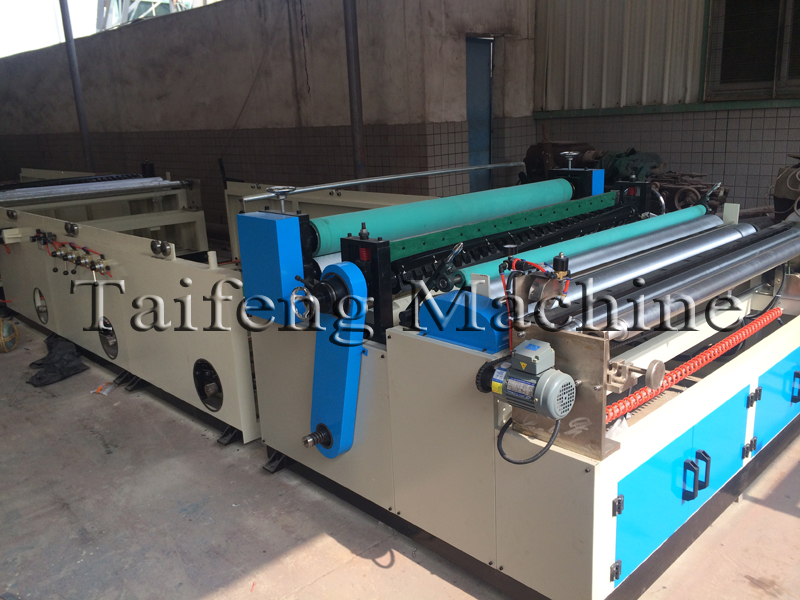

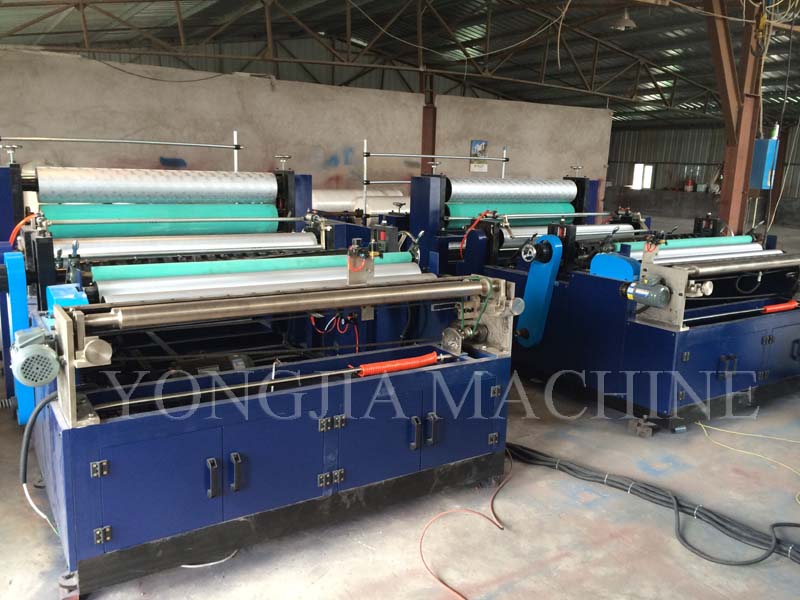

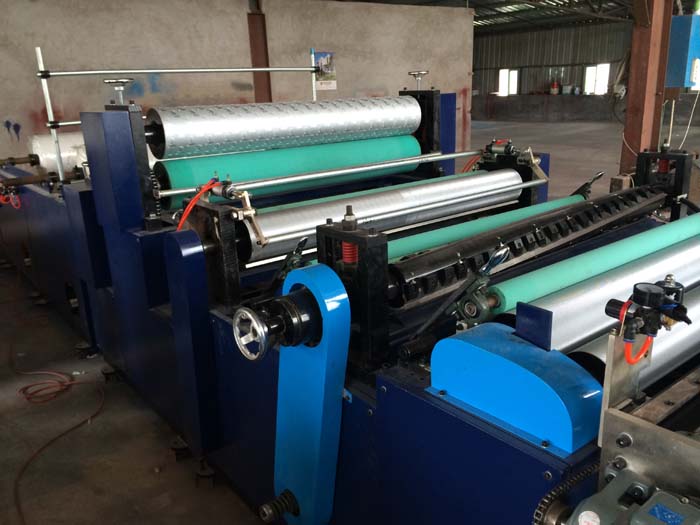

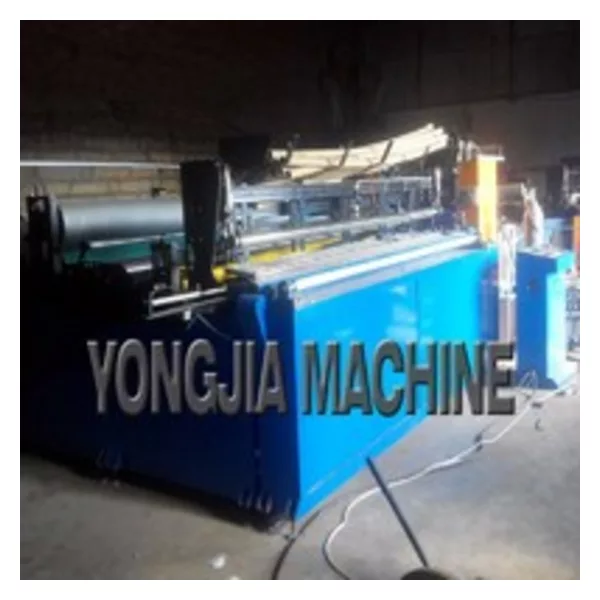

Semi automatic toilet paper machine’s feature and function

1.Pneumatic tension roll, adapt to the high low grade paper production

2.Cutting by large round-knife, the knife body strong rigidity, light running, no noise, no vibration

3.Computer control, finished product weight is unified, can have a paper or without paper core。

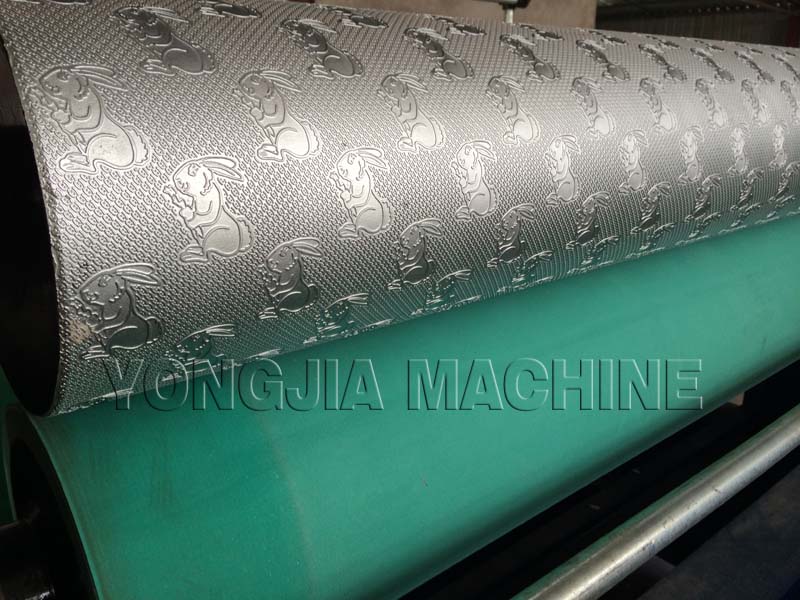

4.Steel to rubber embossing, decorative pattern is clear, can be steel to rubber or steel to wool roller.

5.Special belt, plane cutting, simple operation.

General toilet paper machine of the technical parameters

Model	1575 1760 2200 2500 2800
The width of jumbo rollpaper	1750 2000 2150 2400 2700
The diameter of jumbo roll paper	Standard Φ1100mm，please specify the other sizes
Roll quantity	3a（can specify）
The finished paper core diameter	3”（76.2mm）（please specify the other sizes）
Parameter setting	HMI
Production Speed	0-120M/MIN
Outside Dia	φ90-135mm
The finished paper core diameter	φ25-50mm
Mechanical drive	CVT
Pneumatic system	3 air compressor，minimum pressure5kg/cm2pa（customer owned）
Installed power	3KW 380V,50HZ
Embossing system	Single embossment，double embossment
Dimension	5.1×2.4×1.5 (L x W x H);(m)
Machinery weight	1.5-2T

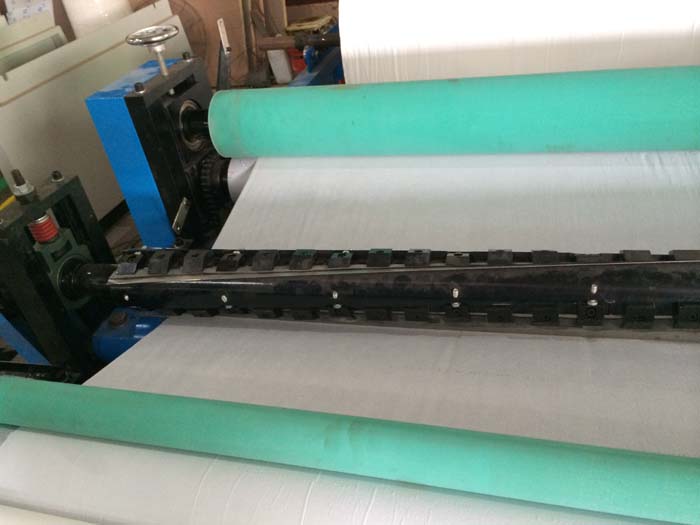

Intervals of punched holes	100mm-120mm（please specify the other sizes）
Paper core diameter size	20-50mm
Roll quantity	1-3a jumbo roll paper can be ordered
Gluing system	Convex glue
Decorating adhesive system	According to the embossed pattern making（need to order）
