9/15 Electrical wire cable twisted wire stranding machine
Product Quick Detail
- FOB Price
- USD $30,000.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- container
- Delivery
- 30 Days
Specifications

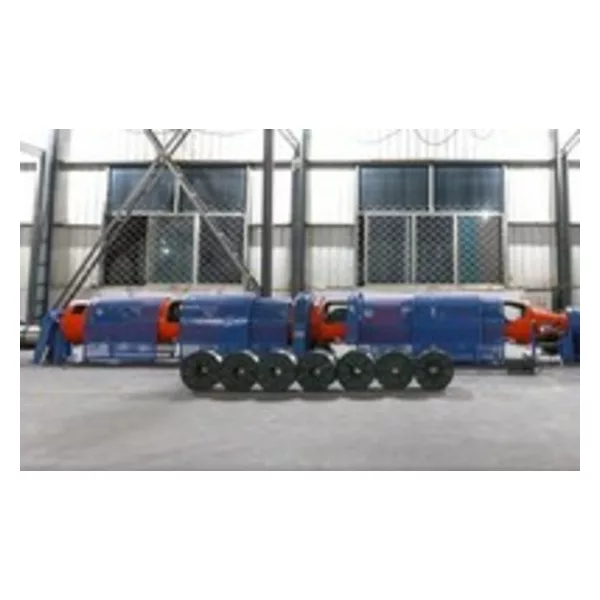

Low noise outer take-up metal wire rope stranding machine
Product Specification
The tubular stranding machine is used for stranding steel wire, Al wire, Cu wire,etc.
Main components:
1.Pay off stand
Main Features
1.The tubular body is supported on the bearing on both ends, and runs at a very low noise.
2.The transmission shaft connects all parts of the machine to ensure the accuracy of the lay-pitch.
3.Wire-break and emergent stops provided for all the line
4.The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.
|
Technical Parameter
|
HGJ-200/6
|
HGJ-200/12
|
HGJ-200/18
|
|
Rotating speed (r/min)
|
2000
|
1900
|
1800
|
|
Single wire diameter(mm)
|
0.30-0.90
|
0.30-0.90
|
0.30-0.90
|
|
Maximum Stranded outer diameter (mm)
|
3
|
3
|
3
|
|
Traction wheel diameter (mm)
|
477.5*2
|
477.5*2
|
477.5*2
|
|
Strand construction
|
1+6
|
1+12
|
1+18
|
|
Lubricant method
|
Pumped recycling oil
|
Pumped recycling oil
|
Pumped recycling oil
|
|
Pitch control
|
Controlled by Frequency converter or Gearbox
|
- Country: China (Mainland)
- Business Type: cable stranding machine
- Market:GLOBAL MARKET
- Founded Year:2020
- Address:YANGMING INDUSTRY ZONE, YUYAO,ZHEJIANG ,CHINA
- Contact:Max Xu
